Computer has no sound, sounds distorted is crackling. This guide will explain how to replace the speakers on an Acer Aspire E1-531-2438.
Werkzeuge
-

                  -
            Turn the device over so the back side is facing up.
-

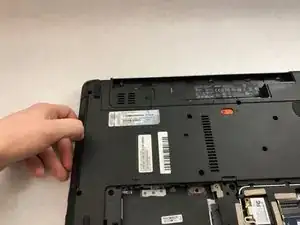

            Using a spudger, slide the orange latch to the right. This will release the battery, which should pop up from the device.
-
            Use two hands tilt the side of the battery closest to the orange latch upward as shown in the images.

-

-

                  -
            Tilt the side of the battery closest to the orange latch upward.
-

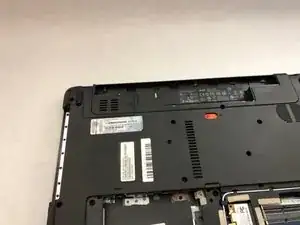

            Lift the battery up and out of the device.

-

-

                  -

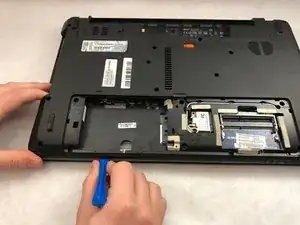

            Using the indentation, pry open the access panel with your fingers or a spudger.
-
            Remove the access panel to expose the hard drive, WiFi chip, and RAM modules.

-

-

                  -
            Grip the plastic tab on the hard drive, then pull to the left to unplug the drive from its socket.
-
            Once free from the socket, lift the hard drive up and out of the device.

-

-

                  -

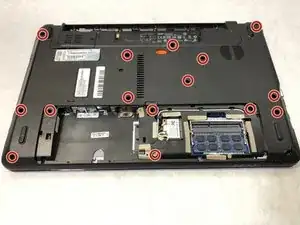

            Using a Phillips #0 screwdriver, remove all of the following screws:
-
            Fifteen 9mm size screws
-
            One 6mm screw
-
            Three 3.5mm screws

-

-

                  -
            Using a plastic opening tool, pry along the seam running the perimeter of the laptop to separate the bottom case from the palmrest assembly.
-
            Flip the device over and open the laptop so that the keyboard is visible.
-

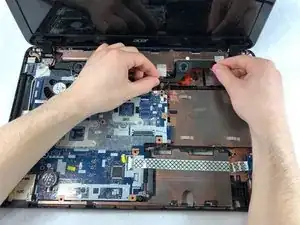

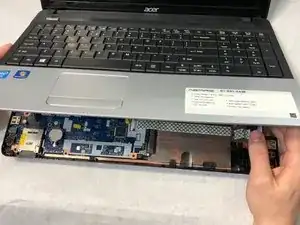

            Lift up the palmrest assembly just far enough to access the connectors underneath.

-

-

                  -

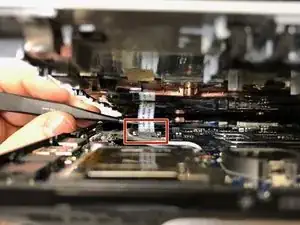

            Using a pair of tweezers, disconnect the small white ribbon cable from the connector near the left side of the device.
-

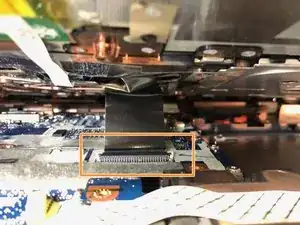

            Disconnect the large black ribbon cable near the middle of the device. Gently pull on the cable away from you.

-

-

                  -

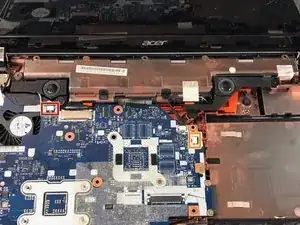

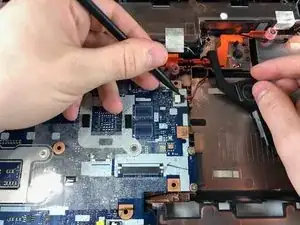

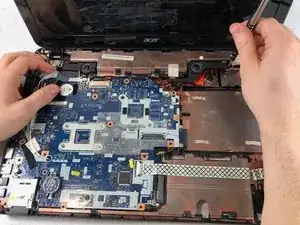

            Using a spudger, disconnect the connector for the left speaker.
-

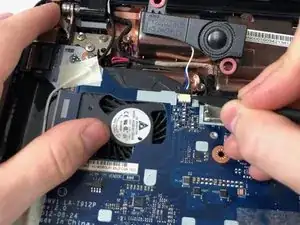

            Disconnect the right speaker connector in the same manner.

-

-

                  -

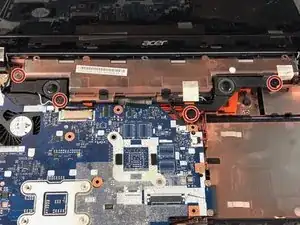

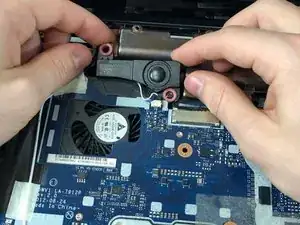

            Using a Phillips #0 screwdriver, remove the four 3mm screws to release the left and right speakers.

-

To reassemble your device, follow these instructions in reverse order.
