Acer Aspire E1-531-2438 Wifi Card Replacement

Geschrieben von: Jakob Rinkus
  • Kommentare: 0
Acer Aspire E1-531-2438 Wifi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

6 Minuten

Einleitung

Bad connection to WiFi, connection dropping out, or no connection at all? This guide will explain how to remove the WiFi card on an Acer Aspire E1-531-2438.

  1. CIfiDwaBwcU1LdKJ
    CIfiDwaBwcU1LdKJ
    ex6KVpXFNxDLg6Ng

    • Unplug and power down the device before removing the battery.

    • Turn the device over so the back side is facing up.

    • Using a spudger, slide the orange latch to the right. This will release the battery, which should pop up from the device.

    • Use two hands tilt the side of the battery closest to the orange latch upward as shown in the images.

  2. ESPVxnurrsJSPhrG

    • Tilt the side of the battery closest to the orange latch upward.

    • Lift the battery up and out of the device.

  3. 5ENZiCRLaHi2J1Iy
    5ENZiCRLaHi2J1Iy
    LHEwMNZTYGytED2h

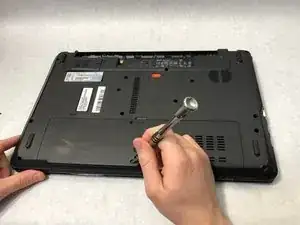

    • Using a Phillips #0 screwdriver, remove the two 9mm screws on the access panel.

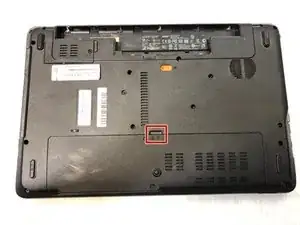

  4. bEKoKKZShPrsZqtY
    bEKoKKZShPrsZqtY
    NTHSAfTqJBQnBQZD
    thtPnKhISAJoAhSX

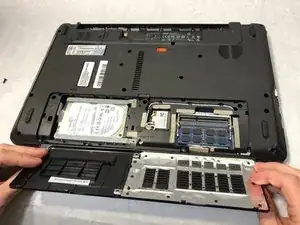

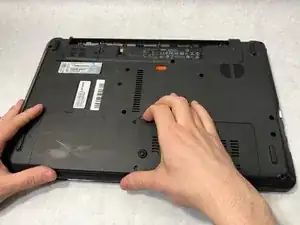

    • Using the indentation, pry open the access panel with your fingers or a spudger.

    • Remove the access panel to expose the hard drive, WiFi card, and RAM modules.

  5. jsNYbBuBJwPlA1nD

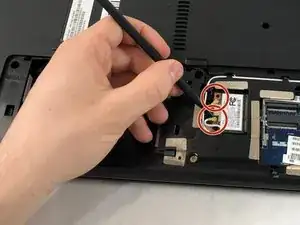

    • Using a spudger, disconnect the two antenna cables connectors on the WiFi card.

  6. AtoLCSfgr6qlaFZe
    AtoLCSfgr6qlaFZe
    FUmaTfoG2lD5QVGt

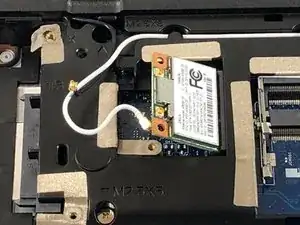

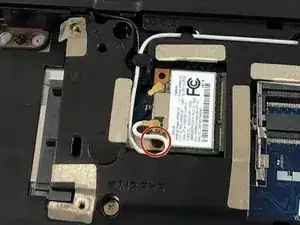

    • Using a Phillips #0 screwdriver, remove the 3mm screw holding the WiFi card in place.

    • The card will then lift up after the screw is removed.

    • Remove the card by pulling out in the direction that the card is now orientated.

Abschluss

To reassemble your device, follow these instructions in reverse order.
