Acer Travelmate 220 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

These are common symptoms requiring the replacement of the RAM chips in an Acer Travelmate 220 include:

  1. The inability to turn your computer on.
  2. Your computer randomly crashing/turning off.
  3. Your computer randomly rebooting/turning on.
  4. The inability to install new programs to your computer.

  1. HPls5Ep1XtVrqvgu

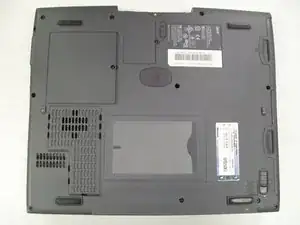

    • Place the computer with the bottom facing up.

  2. 2p2nqeEqC1dhfdU6
    2p2nqeEqC1dhfdU6
    LRVcDrLjypY15w32
    hxGMwmK4e2cEK3AF

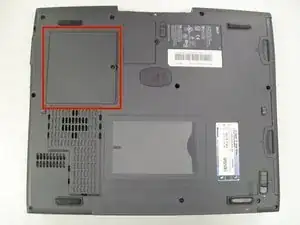

    • Locate the larger cover panel in the upper left hand corner of the computer.

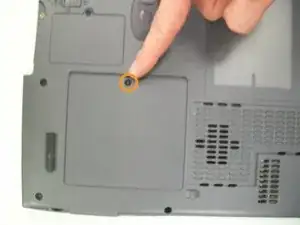

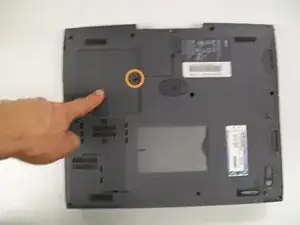

    • Locate the Phillips screw holding the large cover panel in place.

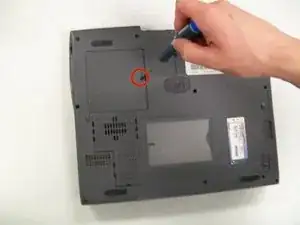

  3. VQOEs4faXnxSkZZN
    VQOEs4faXnxSkZZN
    HjAaAqHZvIYVbKoC

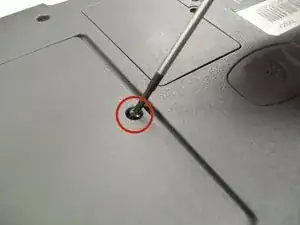

    • Remove the located screw with the Phillips #00 screwdriver.

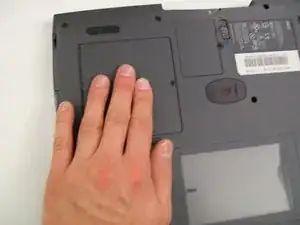

  4. Qxte5i23sjaUGJyr

    • Slide the large cover panel to the right, until you hear a click.

  5. 4i2sq1fSDDxj5qZd
    4i2sq1fSDDxj5qZd
    QVQApXgkYh3aDoKk

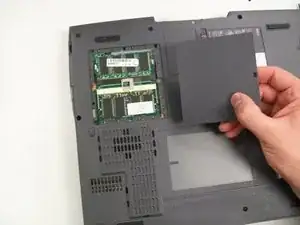

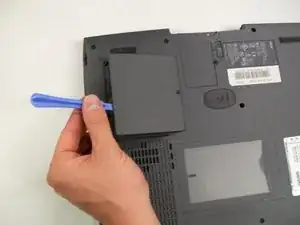

    • Place the plastic opening tool in the gap created to the left of the large cover panel.

    • Pry the cover panel up and remove it from the computer.

  6. 1hkbDCVxPHgxKMcK
    1hkbDCVxPHgxKMcK

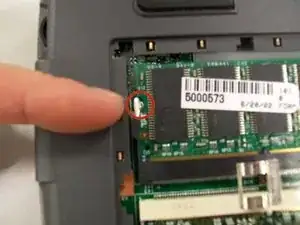

    dtRallaS5nVPKYjp

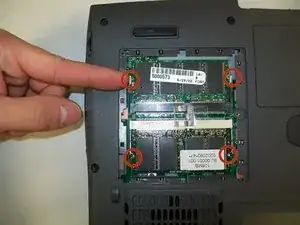

    • Locate the white plastic levers on each side of the two RAM chips.

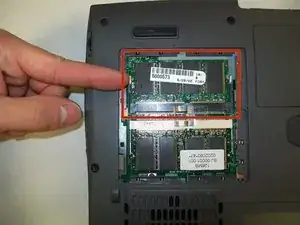

  7. K2hPfqoDjFQPsF35
    K2hPfqoDjFQPsF35

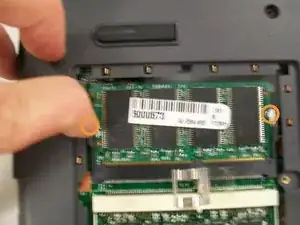

    TXtNJUChefTYLdUT

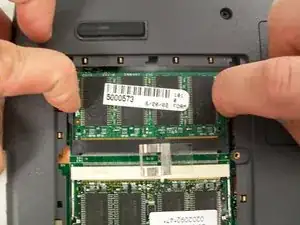

    CxMcSyOXPVYPxkpQ

    • Locate the first RAM chip.

    • Push the plastic levers away from the first RAM chip.

  8. oPLfpqyPGecgWQZF
    oPLfpqyPGecgWQZF

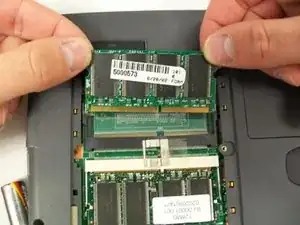

    DEvh1HWwpgQjBJGq

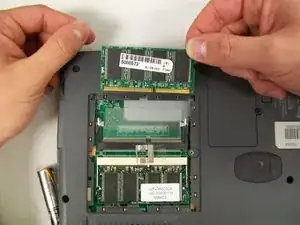

    ussbrJmBfEEdUiGm

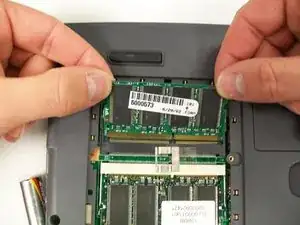

    • Lift the RAM chip from the compartment.

    • Repeat steps 7 and 8 to replace the second RAM chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
