Dell Inspiron 13-7373 Speakers Replacement

Geschrieben von: John Egan
  • Kommentare: 0
Dell Inspiron 13-7373 Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 5 Minuten

Einleitung

This guide will assist in replacing the speakers on a Dell Inspiron 13-7373. This is not very difficult and requires very little removal of other parts of the laptop. You will need a screwdriver along with a tool to open the laptop.

  1. iyxWP2ODiTQCkD6A
    iyxWP2ODiTQCkD6A
    wqEqCVBmwbDIGHid
    QrHpeWqJVBIU6wVW

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Remove the ten 7.5mm Phillips #00 screws from the bottom of the laptop.

    • Use an opening tool to remove the bottom half of the case from the laptop.

  2. 3PkTs4Hqcs2XeIfM
    3PkTs4Hqcs2XeIfM
    OGMeAUvXimNm5cBJ

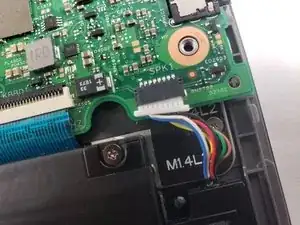

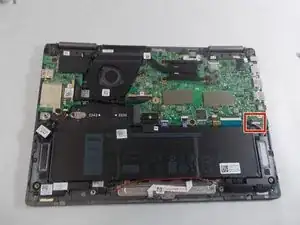

    • Unplug the connector from the motherboard on the right side of the speaker.

  3. gllsvNjGA1heb2uq

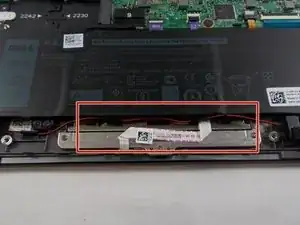

    • Uncoil the wire connecting the left and right speaker from around the bottom of the battery.

  4. 4oiDYC2S3FeKfHhp
    4oiDYC2S3FeKfHhp
    Mdtf5KynFHlSNBVG

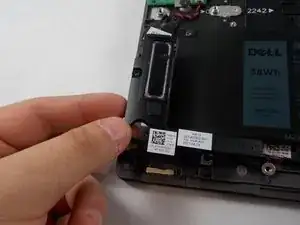

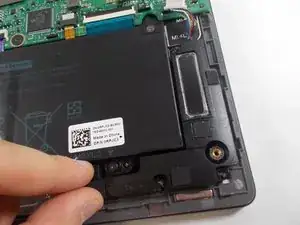

    • Gently lift up on the left speaker and then the right speaker to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
