Dell Inspiron 15-5558 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 - 4 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. CmrpaWwUsSaOoV2a

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

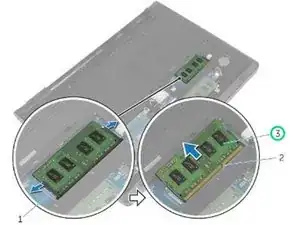

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

  2. q1cDL2WaeXhmrugl

    • Remove the memory module from the memory-module slot.

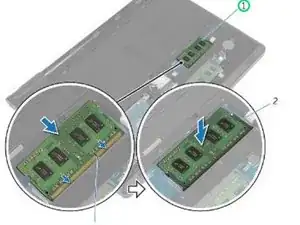

    • Align the notch on the NEW memory module with the tab on the memory-module slot.

  4. y4ZdFV2HXC5UJZkw

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.
