Dell Latitude 7350 Motherboard Replacement

Remove the following ten T5 screws securing the lower case to the upper case.

Two will be 6mm, eight will be 3mm in length.

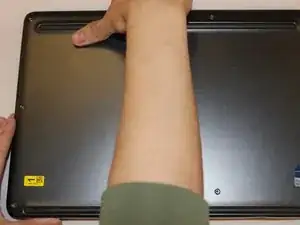

Wedge your fingers between the upper case and the lower case.

Gently pull the lower case away from the upper case.

Remove the lower case and set it aside.

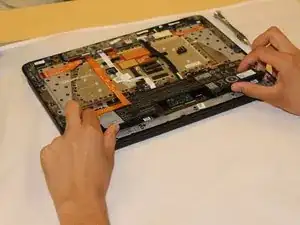

Disconnect the battery cable.

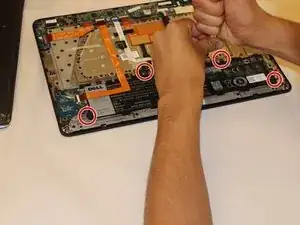

Use a PH1 (phillips) bit to unscrew four screws on the battery assembly tabs.

Take out the battery.

Unplug battery from mother board

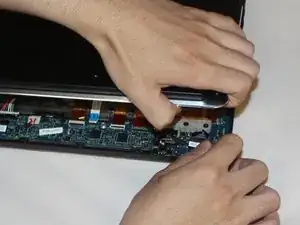

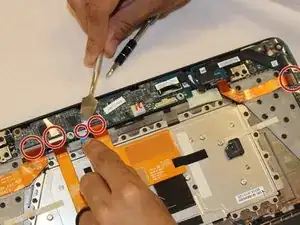

Pry off peripheral logic boards connected to motherboard.

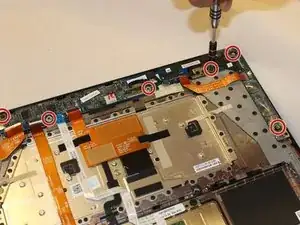

Unscrew and remove Motherboard (6 x T6 x 3mm)

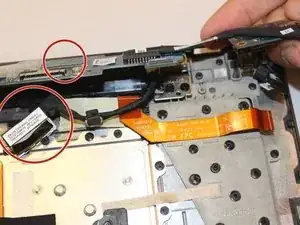

Remove docking cable connecting motherboard to the frame
