Einleitung
The manual one-inch paper-feed roller is what manually feeds documents to the printer. If the manual one-inch paper-feed roller is malfunctioning, the HP OfficeJet 4650's manual functions (fax, copy) will not work. This guide will show you how to replace the manual one-inch paper-feed roller.
Werkzeuge
-
-

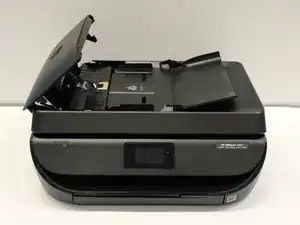

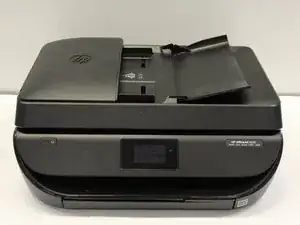

Open the document feeder cover by flipping it to the left with the front panel facing you.
-
-
-

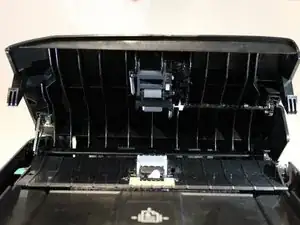

Locate the manual one-inch paper-feed roller end of the document feeder cover.
-

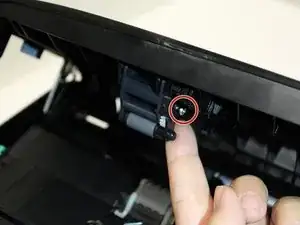

Remove the 11.0mm screw on the side of the roller with 2.0mm hex screwdriver.
-
-
-

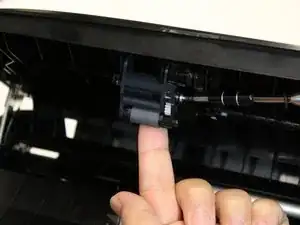

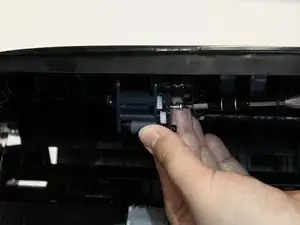

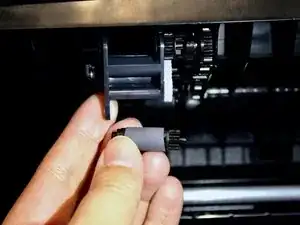

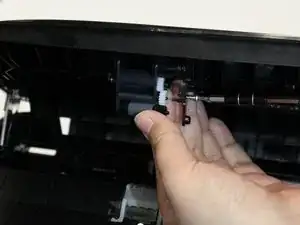

Pull the side cover of the manual one-inch paper-feed roller to the right and remove the paper roller.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
