HP Pavilion 15-ca2073cl Touchpad Replacement

Geschrieben von: Garret Riley Collins

Kommentare: 3

HP Pavilion 15-ca2073cl Touchpad Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace the touchpad of the HP Pavilion 15-ca2073cl.

Before you begin to replace the touchpad, make sure the laptop is powered off.

Werkzeuge

Ersatzteile

HP Pavilion 15-ca2073cl

Schritt 1

Before beginning, make sure the laptop is completely turned off by pressing the off button and waiting for the screen to turn black.
Flip the laptop over.
Remove all the 6.5mm screws (black) and the 4.8mm long screws (silver) using the Phillips #00 screwdriver.

Schritt 2

Use an iFixit opening tool to wedge in between the case and the body of the laptop.
Start from the front and work down both sides, disconnecting clips.
Remove the bottom case from the body.

If the cover is stuck, work the opposite side completly loose and the opposite side from the back. Then use you fingers to pry loose the stuck part from both sides of the stuck part.

Chuck McCracken -

Schritt 3

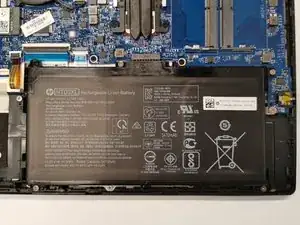

Remove six 4.8mm screws (silver) using the Phillips #00 screwdriver.

The center screw of the side with 3 screws is not attached to the battery and should be left in place.

Chuck McCracken -

The mounting screws online are different than those in my computer. Look for those attached to the black plastic tabs sticking out at the edges of the battery. Not all of them contain screws. If a screw is on one of the metal connections exclusively and not on the black plastic of the battery, it is not a screw that you touch. It's one that holds down metal shields or structural elements of the laptop. Two of the screws shown in the picture are either not part of the battery or were different in mine. For example, if you look carefully in the picture of the battery connections with the circles around them in this article, the center of the three on the far right narrow side is actually not connected to the battery at all. Look carefully.

Chuck McCracken -

Schritt 4

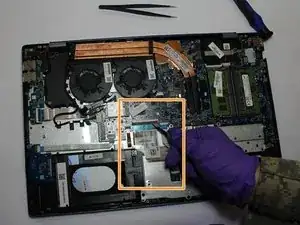

Once the battery is removed, use the tweezers to disconnect the smaller ribbon cable that is attached to the touchpad and motherboard.

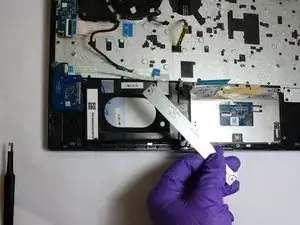

Proceed to disconnect the larger ribbon cable that is attached to the touchpad and motherboard.

Schritt 5

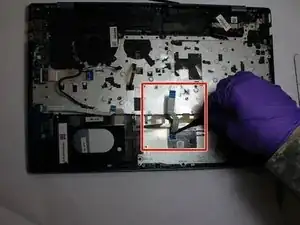

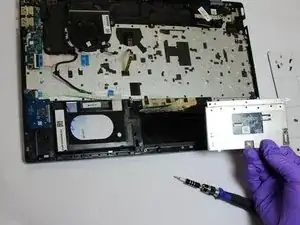

Using a screwdriver with a Phillips #00 screwdriver, remove the three screws on the metal touchpad bracket. Remove the bracket.

Schritt 6

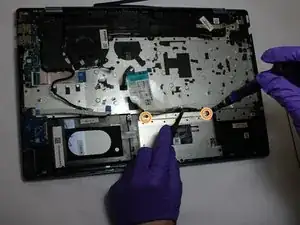

Using the tweezers, pull back the adhesive tape at the top of the touchpad.

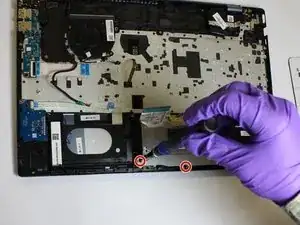

Using the screwdriver with a Phillips #00 screwdriver, remove the two screws at the top of the touchpad.
