HP Pavilion 17-f004dx Hard Drive Replacement

Geschrieben von: Allan Soria
  • Kommentare: 3
HP Pavilion 17-f004dx Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

20 - 45 Minuten

Einleitung

The hard drive may malfunction if physically damaged or put under a lot of stress. Use this guide to replace it if the computer won't boot and or is displaying errors.

  1. MxdmYqcAP1yl6m3K

    • Before you remove the battery, make sure the laptop is powered off.

    • Slide the black battery latches inward to remove the battery.

  2. TQvXGOwJPyZg2F22

    • Pull the battery out towards you while your fingers are still holding the latches in place.

  3. dyyQ2VFBEHaiKbu5

    • Remove one 7 mm screw with a Phillips #1 screwdriver.

  4. jooveXiFwPDORBQF
    jooveXiFwPDORBQF
    srscVY2qrpXpXnun
    RRhUHcSoA26uuLmC

    • Use a metal spudger to push the CD drive out of its slot for removal.

  5. PsLubZpfJSPeTpsD

    • Remove fifteen 7 mm screws with a Phillips #1 screwdriver.

  6. GdeDXjLR2nVsVwsX
    GdeDXjLR2nVsVwsX
    4yDkJGILXHhgDspA

    • Remove the thin plastic cover using the flat metal spudger to expose another screw.

    • Remove one 7 mm screw with a Phillips #0 screwdriver.

  7. rEKlXxaWPIeKJMHT
    rEKlXxaWPIeKJMHT
    FTfZZQmFue6RfEJw

    • Use a metal spudger to remove the rubber "feet" to expose two screws.

  8. fBUHCVeesQaajbb4

    • Underneath each rubber foot, there is a screw.

    • Use the Phillips #1 screwdriver to remove a 4.8 mm screw on each side.

  9. kUkAPcX6XnVOqRYS

    • Remove the two black end caps to expose more screws.

    • The end caps will require some force to remove.

  10. uggKQn5OPDO6yGXF

    • Remove the following six screws with a Phillips #1 screwdriver:

    • Two 7 mm screws.

    • Two 7 mm screws.

    • Two 4.8 mm screws.

    At step 11 there are only two screws. Those marked in yellow in the picture.

    Paul Clark -

    Step 10, the screws under the end caps. My device also only had the yellow screws in place.

    Jacklyn Collado -

  11. ZFCYwUID13gDxpLL

    • Remove two 2.4 mm broadhead screws from the CD Drive bay with a Phillips #0 screwdriver.

  12. IYuB5Xw4YFdG6VDY
    IYuB5Xw4YFdG6VDY
    QrSTKXBTQsaVqPDc

    • Flip the laptop back over. Then, with the laptop open, move the plastic prying tool around the top cover to pry it from the enclosure.

  13. ZlSiycO51BMVYA3b

    • Partially lift the top cover from the enclosure.

  14. eEfEFCerShJevtqe
    eEfEFCerShJevtqe
    QmMaf3GTRsEV6CHh

    • Remove the ribbon connecting the power button to the motherboard.

  15. j5rmNgoqVCBOtCTF
    j5rmNgoqVCBOtCTF
    x2GIlMV5BKAdsOLP

    • Remove the ribbon connecting the mousepad to the motherboard.

  16. pHMv5GRnVLWWQQSW
    pHMv5GRnVLWWQQSW
    NuHLWm6GeKsKKgi2

    • Remove the ribbon connecting the keyboard to the motherboard.

    • You may now fully lift the front panel from the rest of the laptop.

  17. 42YUSyPPIjRkarWK

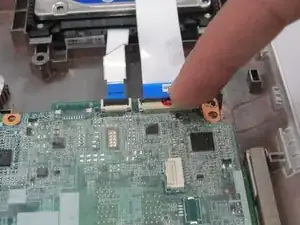

    • Lift the black retaining bar that holds down the two hard drive ribbons to unlock them.

  18. nJOARHcgBWhJnSZt

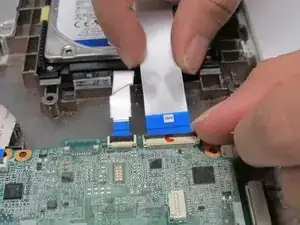

    • Gently pull the ribbons out.

  19. 2gL5LKFSDgxehDpH

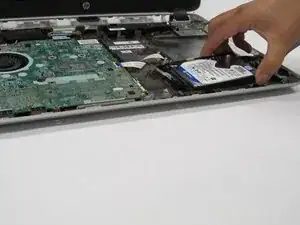

    • Lift the hard drive out from the enclosure.

  20. At1gqLjo5eyttfmZ
    At1gqLjo5eyttfmZ
    Jj2skT5ltAOoJCoP
    B6qiby6seDoiBCFO

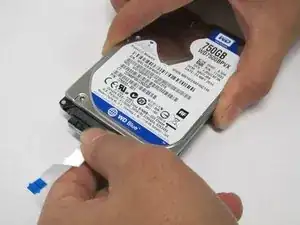

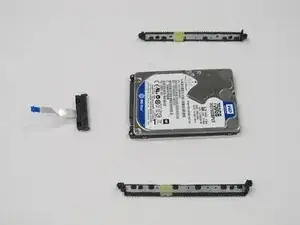

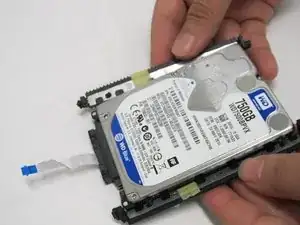

    • Pull the rubber casing away from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
