Einleitung
Werkzeuge
-

                  -

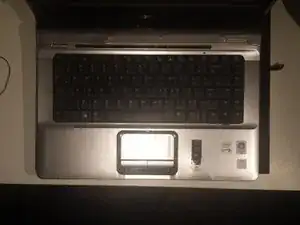

            Make sure the laptop lid is closed, turn it over and remove the battery by moving the switch right to left.
-
            there are three philips screws located on the surface where the writing is. remove those three screws.

-

-

                  -

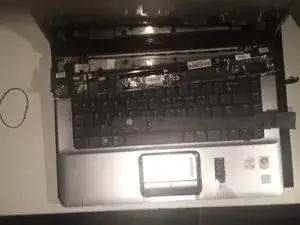

            turn the laptop right side up. Between the cover and case on the top right of the laptop and using a plastic sludger or a finger lift gently on the speaker cover as to disengage the clips.
-
            Be sure not to pull hard or you may damage the ribbon cables.
-

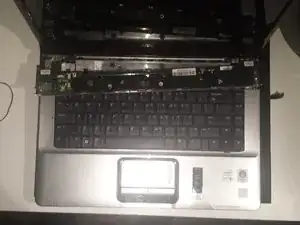

            From the side closest to the screen turn the cover towards yourself.

-

-

                  -
            there is one connector from the speaker bar to a control board. Gently remove the cable.
-
            There are two more screws attaching the speaker bar to the cover, remove these and take the speaker bar out.

-

-

                  -
            you are now ready to replace or repair the speaker bar. I recomend purchasing a new one, they range anywhere from 5-15 dollars online.

-

To reassemble your device, follow these instructions in reverse order.
