HP Pavilion x360 11-p110nr Wireless Chip Replacement

Geschrieben von: Safe Mustafa
  • Kommentare: 0
HP Pavilion x360 11-p110nr Wireless Chip Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will demonstrate how to replace the wireless chip if it were to be damaged or upgraded.

  1. KJwOZYsUb5C6UA2S
    KJwOZYsUb5C6UA2S
    T1yfyCOaMft1VrIf

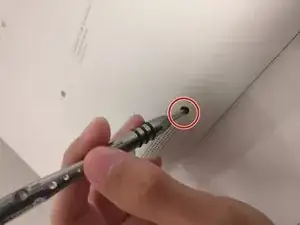

    • Unscrew all the screws.

    • Detach the back by simply pulling it from the base of the computer.

    • Do not fully pull the back out because it is usually has a safety plastic that needs to be removed first.

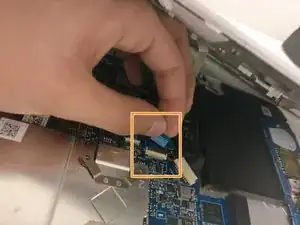

    • Locate and pull the the safety plastic. Look for a blue plastic attached to a chip with part of the plastic attached to the back of the computer.

  2. IVfsLxvCghHwZn3B
    IVfsLxvCghHwZn3B
    Fxy4HsffouHRi6rL
    CkFUfp1mOvKHGHEO

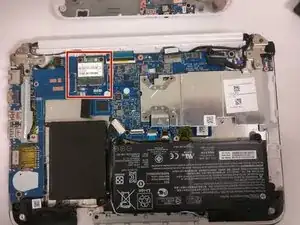

    • The wireless chip is square shaped with a white paper glued to it. The chip is in the top left section of the back with a wire connected to it.

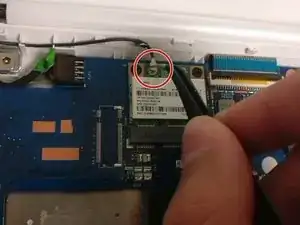

    • Pull the wire connected to the chip using the tweezers.

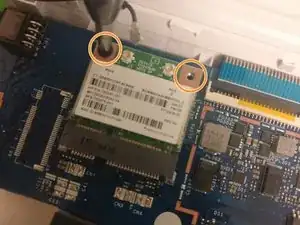

    • Unscrew the two screws near the top.

  3. cDfQKQBSE5pWPdU5

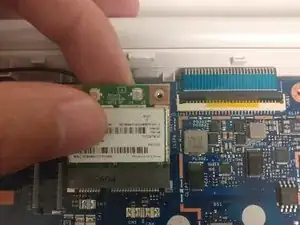

    • Pull out the chip and place in the new one in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
