HP ProBook 440 G1 Keyboard Replacement

Geschrieben von: Ethan A Courtney
  • Kommentare: 1
HP ProBook 440 G1 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

How to remove and replace the keyboard of an HP ProBook 440 G1.

  1. fODLBkHedQBOnn5y
    fODLBkHedQBOnn5y
    SdWfSEGViRqauKGL

    • Make sure the laptop is turned off before you start.

    • Push and hold the release tab on the right and left toward the center.

  2. wAGEM1HCv1htPVMO
    wAGEM1HCv1htPVMO
    jwQJOY2ItQ3PXFPv

    • Pull the battery out.

  3. wobUa2ONdLJiYUCT
    wobUa2ONdLJiYUCT
    vUVfPXLRCWfOmJq3
    v15gpeynRq5VfdFu

    • Push and hold the release tabs on the right and left toward the center again.

  4. dsDxEjL5ONDoZEQQ

    • Slide the backplate off.

  5. IyGQwFxtR2tbZMhY
    IyGQwFxtR2tbZMhY
    K1wMRVOmVJBobyO2

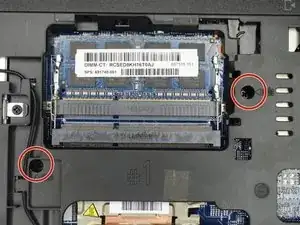

    • Locate the two screws on the back of the laptop, holding the keyboard.

    • Remove the two screws using a Phillips #00 screwdriver.

  6. ao4jpeDbOwa4jUCm

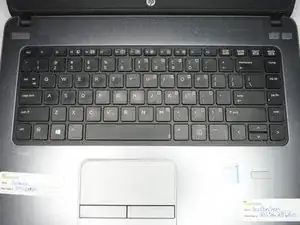

    • Flip the computer over so as to see the keyboard.

  7. bMh5o215OLrIN2Ec
    bMh5o215OLrIN2Ec
    EmTOTOqvdal63TDC

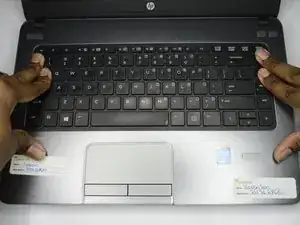

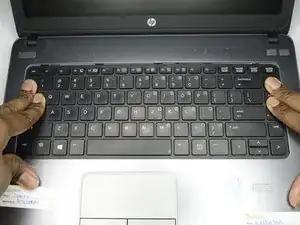

    • Place both hands on the keyboard and slide it back.

    • The keyboard will only slide back a small amount.

  8. KG5NdSVa1PQrneWH
    KG5NdSVa1PQrneWH
    sJHTOiJ1rYSuFvC4

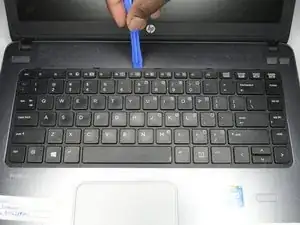

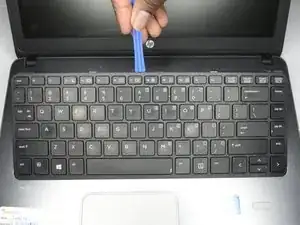

    • Using a plastic opening tool, pull the keyboard up.

  9. SeQGUQPjLuRhLTCt
    SeQGUQPjLuRhLTCt
    S11ikAIxlDrq5NHr
    KiD6pbMa2HZ1yQA5

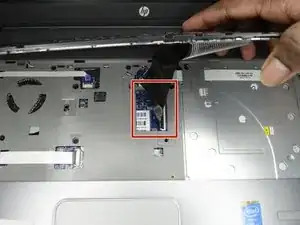

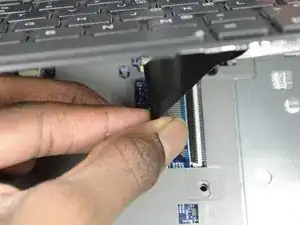

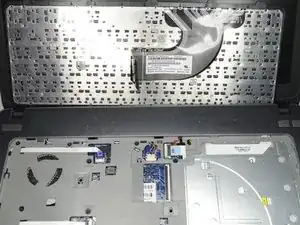

    • Locate the connector strip between the keyboard and the laptop.

    • Pull the strip away from the connector until it unplugs.

    • It may take some force to make the strip disconnect.

Abschluss

To reassemble your device, follow these instructions in reverse order.
