In-Place Fan Cover Removal

Geschrieben von: Stefan Countryman
  • Kommentare: 1
In-Place Fan Cover Removal

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

  1. s2Mh12yheONSRk4u
    s2Mh12yheONSRk4u
    Q3smZHDdXAX3Alya
    vUGVmoMHAPYRTvyh

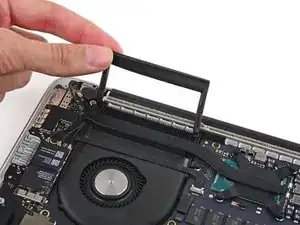

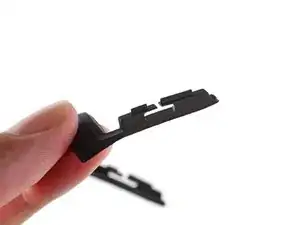

    • Carefully remove the rubber fan bumper from the edge of the heat sink.

    • The bumper is gently held in place by the lips in the third image which wrap under the heat sink. There is no adhesive, so removal and reseating should be easy.

  2. PlJncytVbnR5eHGT
    PlJncytVbnR5eHGT
    aOkVXtPlNRa3hnAT

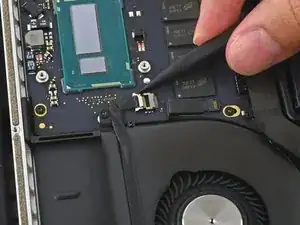

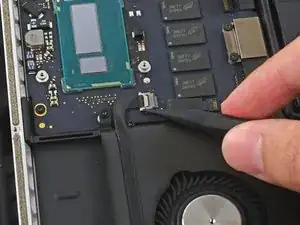

    • Use the tip of a spudger to push on either side of the the iSight camera cable connector to walk it out of its socket on the logic board.

    • The cable connector is small and delicate, so make sure to nudge it out a little bit at a time from each side, alternating until it is fully out. A spudger or tweezers are ideal for this.

  3. tsrwDgAnf2sYT5Xd
    tsrwDgAnf2sYT5Xd
    RqWtpGpWEIkKZCCE

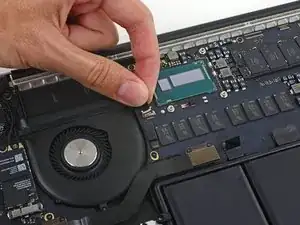

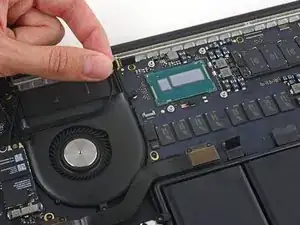

    • Peel the iSight camera cable off the fan housing to fold it out of the way.

    • You can optionally use hot air to soften the adhesive and/or a spudger to help separate the cable from the fan housing.

  4. ALWapaNNwN44FkB1
    ALWapaNNwN44FkB1
    CGKPPATJDN3DLBFR

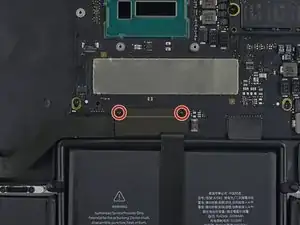

    • One of the screws holding the top shell of the fan assembly is hidden just behind the I/O board cable.

    • Remove the two 2.1 mm T5 Torx screws securing the I/O board cable bracket to the logic board.

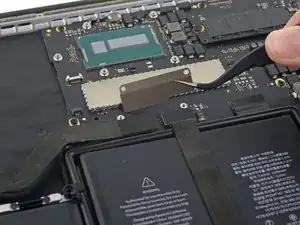

    • Remove the I/O board cable bracket.

  5. JnCabD4fdGvbbMpM
    JnCabD4fdGvbbMpM
    XHSmIAGJeCxVgRvD

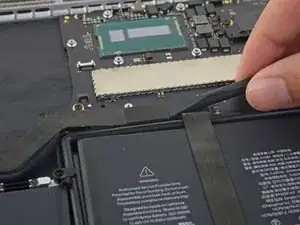

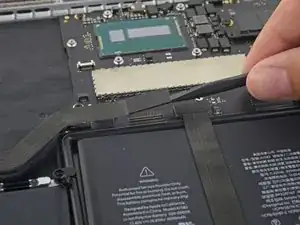

    • Use the flat end of a spudger to pop the I/O board connector straight up off its socket on the logic board.

    • Be careful to only pry up on the I/O board cable, not on the socket itself or you risk damaging your logic board.

  6. hGJFmUYNSuXIBmfK
    hGJFmUYNSuXIBmfK
    KdsrVUeaevL1TJ4I

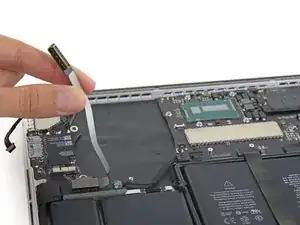

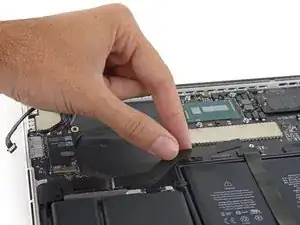

    • Lift the logic board end of the I/O board cable straight up to bend it out of the way.

    • To avoid damage to the cable, fold only at the bend in the I/O board end of the cable. It will only be in the way momentarily, so don't try forcing it to stay.

  7. VZueARnfuH4aNuTc

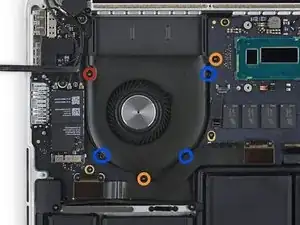

    • Remove the following screws securing the fan assembly cover to the rest of the assembly:

    • One 5.0 mm T5 Torx screw.

    • This screw holds the upper case, main fan assembly, and fan assembly together, and so must be removed.

    • 3 Phillips #000 screws.

    • The bottom right screw is just under the I/O board cable, and will be visible after it has been lifted out of the way.

    Ignore the orange circles in this step. This photo is also used for a fan replacement, in which case you need to remove the orange ones.

    Rob Gorbet -

Abschluss

To reassemble your device, follow these instructions in reverse order.
