Einleitung
This guide shows how to replace the speakers on the Insignia NS-DS9PDVD15.
Werkzeuge
-

                  -
            After the back is removed and the disk tray is loose from the bottom, locate the two, 3 mm screws that hold the tray to the hinge.
-
            Unscrew them with the JIS #000 screwdriver.

-

-

                  -

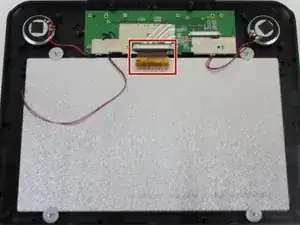

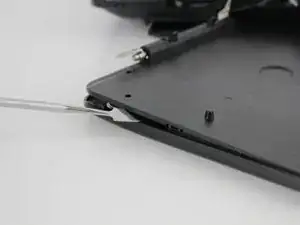

            After the bottom cover and disk tray have been removed, remove the back panel from the top half.
-

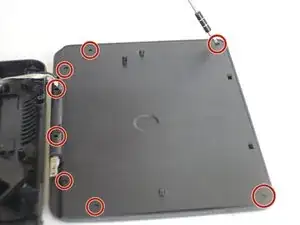

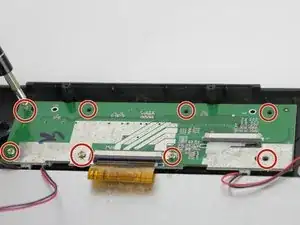

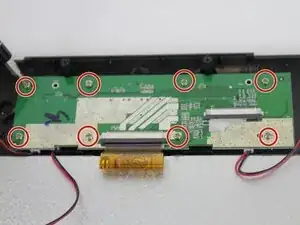

            There are six, 9mm screws on the bottom cover and 2 screws on the hinge. Remove them with the JIS #000 screwdriver.

-

-

                  -

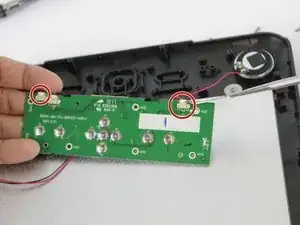

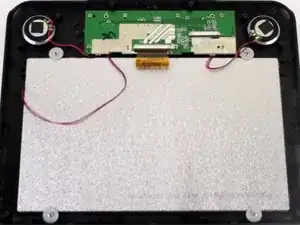

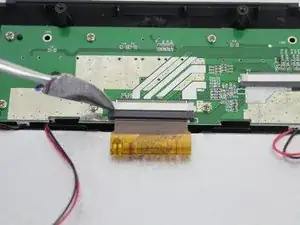

            Flip over the PC board. Remove the two sets of red and black wires which connect to the speakers.
-

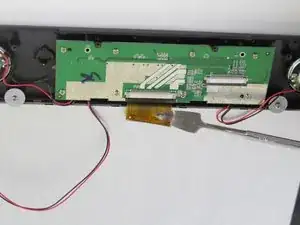

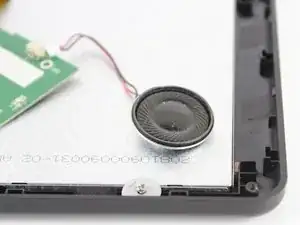

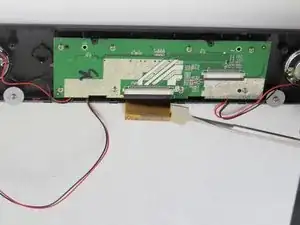

            Use the pry tool at the white clip, to remove the wires. Then you can remove the speakers.

-


                            Abschluss

                          To reassemble your device, follow these instructions in reverse order.
