KidzLane Walkie-Talkie Press-to-speak button Replacement

Geschrieben von: Amin
  • Kommentare: 0
KidzLane Walkie-Talkie Press-to-speak button Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

You will need a small Phillips head screwdriver and a soldering device to complete this project.

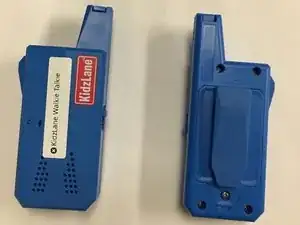

  1. V3PfSNwaSBjyRt61

    • Place the Walkie-Talkie on a flat surface-preferably a table or a desk.

    • Flip the device over to where you see four screws in each corner.

    • Make sure you take out the batteries before proceeding.

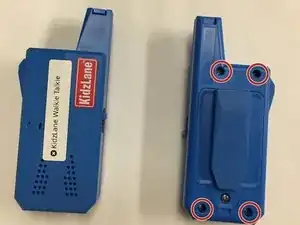

  2. KUQYECthFPK4ZRgp
    KUQYECthFPK4ZRgp

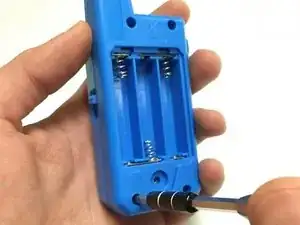

    TsZqJrkvXVDK2CCJ

    • Using your Phillips head screwdriver, unscrew all four 4mm screws from each corner.

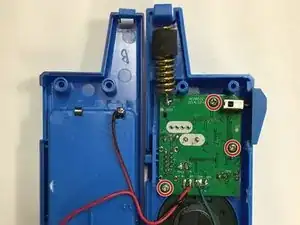

  3. nwJdJ5FyOhP1HxSo

    • Once you have unscrewed all four corners, open the device so it will be in two parts.

    • As you're opening the inside of the Walkie-Talkie, don't break off any wires within the device.

    • Taking the Phillips head screwdriver again, unscrew the three screws on the circuit board (green plate).

    • Separate these screws from the other four since they are different sizes.

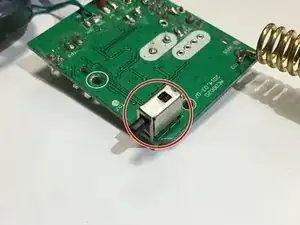

  4. L2Gi5cwLDOPi6VEa
    L2Gi5cwLDOPi6VEa

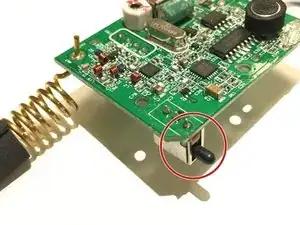

    Nev1wYEyWquSsplu

    • Take the circuit board out of the plastic casing.

    • Use the soldering device to iron the silver box (press-to-speak button), and then remove it from the circuit board.
