Lenovo ThinkPad Yoga 14 20FY Fan Replacement

Geschrieben von: jose aguirre
  • Kommentare: 2
Lenovo ThinkPad Yoga 14 20FY Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

Is your computer getting too hot and randomly powering down? Try replacing your fan by following these steps.

  1. mjDHGxLMWwca32Ir
    mjDHGxLMWwca32Ir
    JDH6PANDqVw6K2ZI

    • Remove the indicated nine M2 x 6 mm nylon-coated screws using a Phillips head screwdriver.

    • The screws do not come all the way out. Do not force them out.

    I must have a similar but different model. 11 screws on this type 20FY.

    curmudgeon44 -

  2. KZcQ3KjocWjJ5roe
    KZcQ3KjocWjJ5roe
    tvtiKqORBAJRoLvP

    • After removing all of the screws, gently lift up on all covers to remove the back plate and reveal the interior of the device.

    The stylus blocks removal, just pull it out. In my case something in vicinity of power plug kept case from opening, have not solved that problem as yet.

    curmudgeon44 -

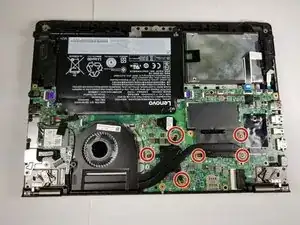

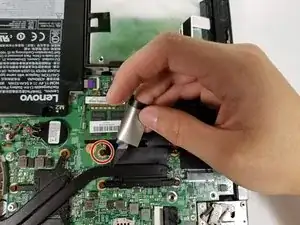

  3. xNPMMmeC3lLItOla
    xNPMMmeC3lLItOla
    UXKUbpIxdkiRR5ci

    • Remove all 7 screws.

    • One of the screws is behind a black piece of the plastic.

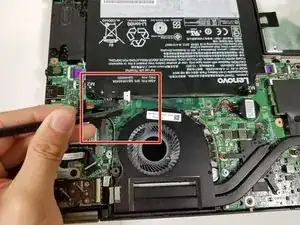

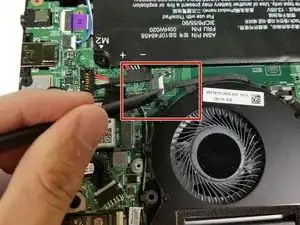

  4. CWFxnhZ33fDtkhQG
    CWFxnhZ33fDtkhQG
    afYTBWtOvwwBeY5d

    • Use the flat end of the spudger to push the connector out of its socket .

    • Do not use the wire to pull the connector out!

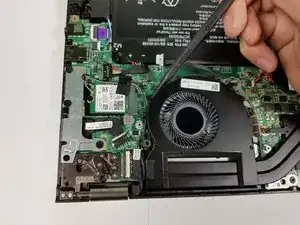

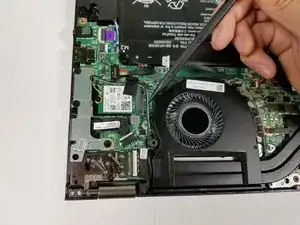

  5. Im51oDDNp4T6q6AS
    Im51oDDNp4T6q6AS
    Vw4sLJBlmV3NdgHS

    • There is a wire looped around the fan. Use the spudger to pull the wires out of the loop.

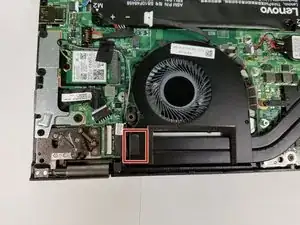

  6. 6ifBUJx3EFFjULCm

    • Gently peel back a piece of tape in the bottom left corner of the fan.

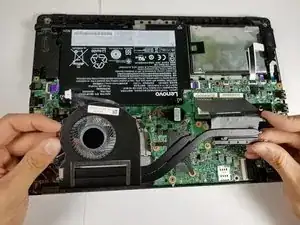

  7. l1CW14gBgKCuWOfN

    • Gently lift out the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
