Milwaukee 2704-20 Chuck Replacement

Geschrieben von: Unique Linnell
  • Kommentare: 0
Milwaukee 2704-20 Chuck Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. aBVbfffMVwjcQtft
    aBVbfffMVwjcQtft
    OE1jQ1mXdGIMySKG
    SIo2migFpfEyOlFy

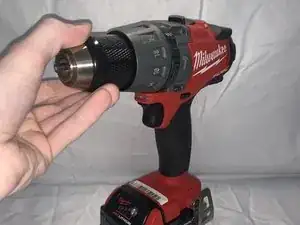

    • Rotate the chuck counterclockwise until it stops rotating.

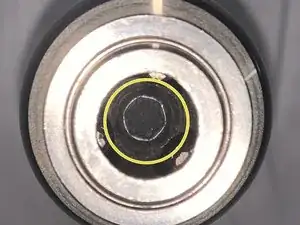

    • Inside the chuck, the “chuck screw” (M8.0 x 1 LH T-40 Chuck Screw) should now be revealed.

  2. xeSWgKbe3CchiTWj
    xeSWgKbe3CchiTWj
    aJxFKq5tG3CHxFir

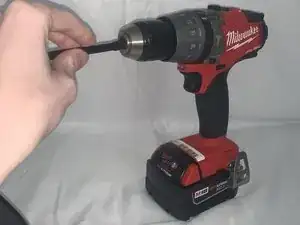

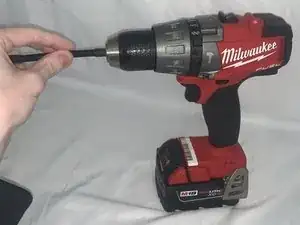

    • Insert a 10 mm Allen wrench bit into your screwdriver body.

    • Remove the chuck screw by rotating Allen wrench counter-clockwise.

    • When rotating the Allen wrench in the chuck, there may be a clicking noise. This is perfectly normal.

  3. dcExSenxvl1KwCcC

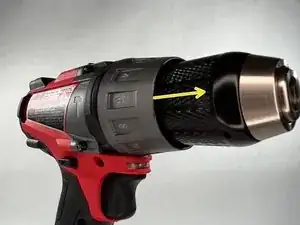

    • Pull the chuck in the direction indicated.

Abschluss

To reassemble your device, follow these instructions in reverse order.
