Milwaukee 2704-20 Control Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide is about how to replace a Control Switch for Milwaukee 2704-20 Drill. You will need to use the Milwaukee 2704-20 Disassembly Guide first in order to replace the control switch.

  1. MPSvrFVZY6EXNQEg
    MPSvrFVZY6EXNQEg
    wngtTFEDIk221NWP

    • Remove the battery from the drill.

  2. kAe1mx2JT1VAhtRD
    kAe1mx2JT1VAhtRD
    w2Z1kCp6QTUGZUv4
    fFfNJBatlTWEQRVv

    • Remove the indicated screws (M3 x 16mm Pan Hd. ST T-10 Screws) with screwdriver.

  3. tdknR4EUcTCnCdnE
    tdknR4EUcTCnCdnE
    ufwBTGoJVJXgG6Jw
    wkiEZpJGydFWUPSQ

    • Gently lift the cover off the drill. Be careful not to force it or damage any of the internal components.

    • If the cover doesn't come off easily, check for any clips or latches that may be holding it in place. These can usually be released by pressing them with a small flathead screwdriver.

  4. 3phxjrcUVpJksrov
    3phxjrcUVpJksrov
    eTXf1oPnqJQN32iR
    Gn2jos1sWbWV3vbY

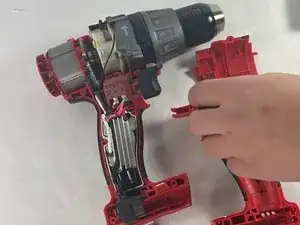

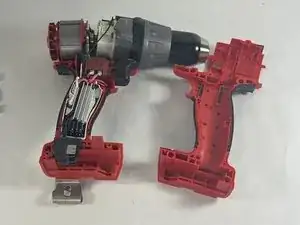

    • Remove the control switch.

    • It is not attached to anything and should slide out easily. Take note of orientation and be sure to replace it in the same position.

Abschluss

To reassemble your device, follow these instructions in reverse order.
