Milwaukee 2704-20 Outer Case Replacement

Geschrieben von: Unique Linnell
  • Kommentare: 0
Milwaukee 2704-20 Outer Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

Not looking to replace your old drill but need to get into the internal components to fix a few things well this guide will show you just that. All that will be needed is a Phillips screwdriver and a flathead screwdriver.

  1. MPSvrFVZY6EXNQEg
    MPSvrFVZY6EXNQEg
    wngtTFEDIk221NWP

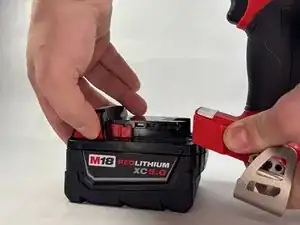

    • Remove the battery from the drill.

  2. kAe1mx2JT1VAhtRD
    kAe1mx2JT1VAhtRD
    w2Z1kCp6QTUGZUv4
    fFfNJBatlTWEQRVv

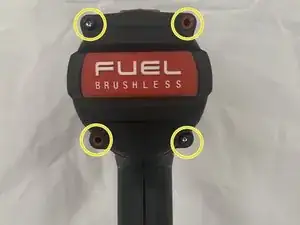

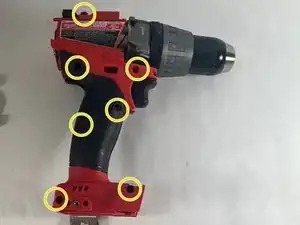

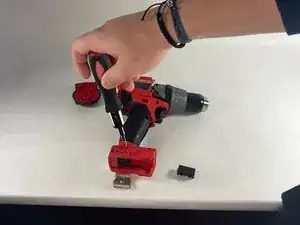

    • Remove the indicated screws (M3 x 16mm Pan Hd. ST T-10 Screws) with screwdriver.

  3. tdknR4EUcTCnCdnE
    tdknR4EUcTCnCdnE
    ufwBTGoJVJXgG6Jw
    wkiEZpJGydFWUPSQ

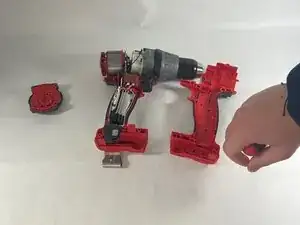

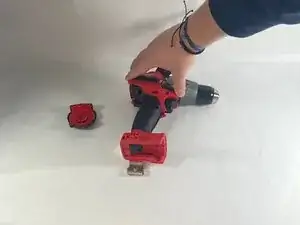

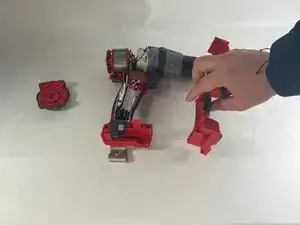

    • Gently lift the cover off the drill. Be careful not to force it or damage any of the internal components.

    • If the cover doesn't come off easily, check for any clips or latches that may be holding it in place. These can usually be released by pressing them with a small flathead screwdriver.

Abschluss

To reassemble your device, follow these instructions in reverse order.
