Porter-Cable PCE211 Anvil Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

20 - 30 Minuten

Einleitung

If you need to replace the anvil of your Porter-Cable PCE211 drill, follow this guide.

Be sure to turn the drill off and unplug it from the power source prior to beginning the repair.

  1. V2RP4naP6erCmuYE
    V2RP4naP6erCmuYE
    ZWONyjjAmcJxX1we

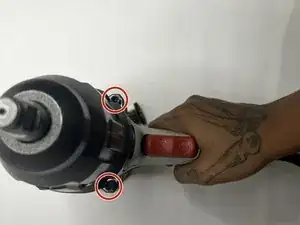

    • Using the Hex Security SAE 7/32", remove the four 10 mm socket screws at the base of the gearcase.

  2. nvL4fXQWUW2c6UgW
    nvL4fXQWUW2c6UgW
    2F4Z2DXDfbInUdSN
    jPkAIirH3sIXipLx

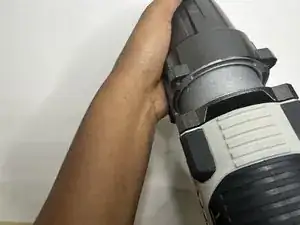

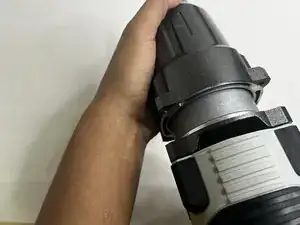

    • Grip the body of the impact wrench with one hand and the gearcase in the other and firmly pull to remove it.

    • Be careful about any loose parts when removing the head.

  3. QXXPNBCsXvDHIN2A
    QXXPNBCsXvDHIN2A
    ttSHfvQUQC2W4usN
    YtYeQJvhSQlkQVDd

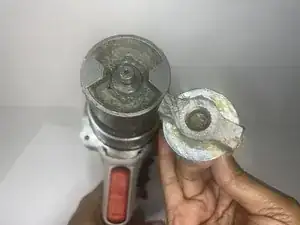

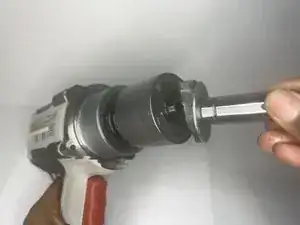

    • Firmly pull the to remove drill bit holder also known as the anvil.

    • Before replacing the anvil, lubricate the base for the best performance.

Abschluss

To reassemble your device, follow these instructions in reverse order.
