Is the trigger of your drill not engaging the chuck when pressed? If so, here is a guide that provides a solution with a change of the trigger. You need a plastic opening tool, a Torx T15 screwdriver, and a Torx T10 screwdriver to remove the requisite components.
-
-
Orient the drill to have the side with the screws facing up.
-

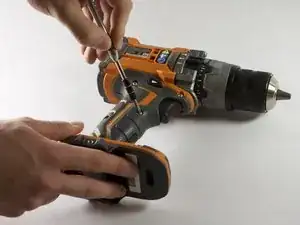

Using the Torx T10 screwdriver, remove the eight 4.0mm screws from the face of the drill.
-
-
-
Orient the drill to where the back is facing up.
-

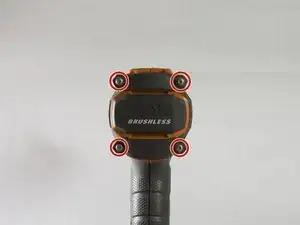

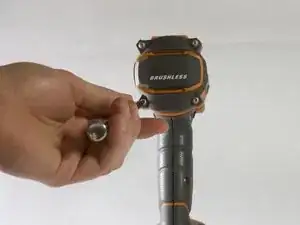

Using a Torx T10 screwdriver, remove the four 6.0mm screws that attach the back piece to the drill.
-

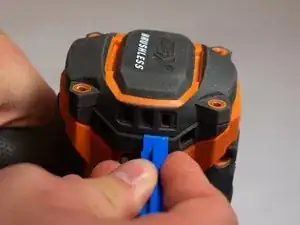

Remove the back piece of the drill using the iFixit opening tool.
-
-
-
Orient the drill to where the chuck is facing up.
-

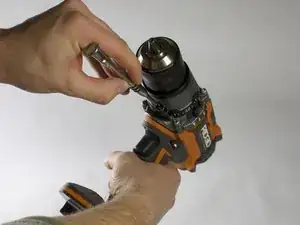

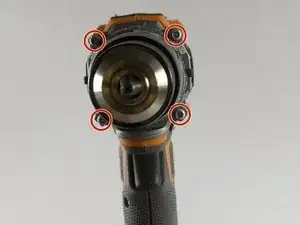

Using the Torx T15 screwdriver, remove the four 8.0mm screws from the front of the drill.
-
-
-
Orient the drill so the side with the screw holes is facing up.
-

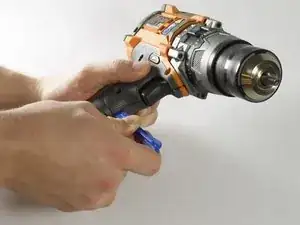

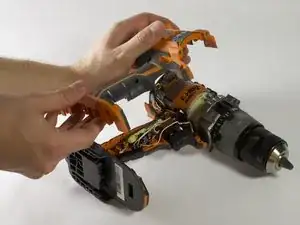

Use a plastic opening tool to gently pry the face off of the drill.
-
Remove the face completely from the drill.
-
To reassemble your device, follow these instructions in reverse order.
