A damaged hose will not allow the vacuum to work properly. This guide will show how to detach the hose from the vacuum.
-
-

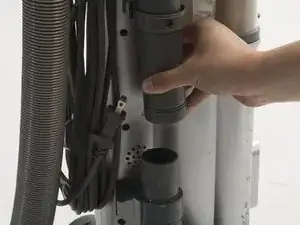

Locate the upper connection of the hose found directly below the base of the handle. Push in the the tab on the outside of the tube with your thumb.
-

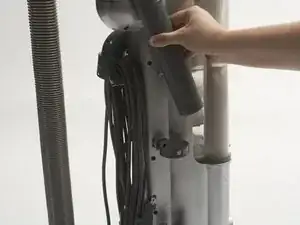

Pull down on the tube while maintaining pressure on the tab.
-

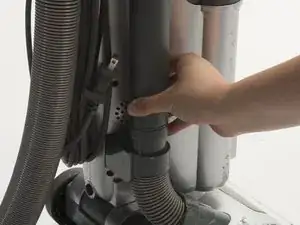

Separate the upper connection of the tube from the housing, releasing the hose.
-
-
-

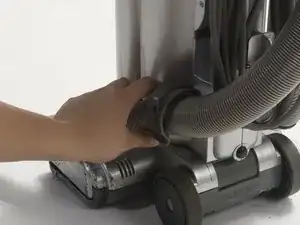

Locate the lower attachment of the hose found in the bottom left corner.
-

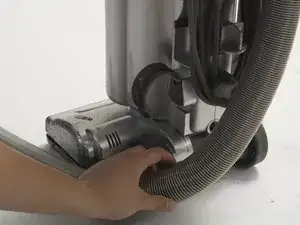

Pull the hose down towards the floor, releasing the hose from the hose guide.
-
-
-

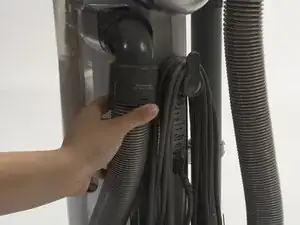

Pull up on the hose pipe located on the right side of the vacuum firmly.
-

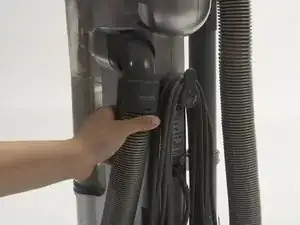

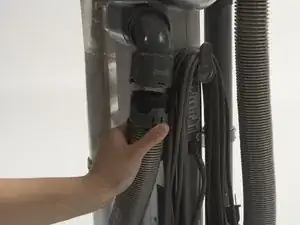

Lift the hose pipe upwards and all the way through the plastic guide ring.
-
To reassemble your device, follow these instructions in reverse order.
