Sony Vaio Fit 13A Charger Port Replacement

Geschrieben von: Marii
  • Kommentare: 5
Sony Vaio Fit 13A Charger Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

  1. D6cAKHCfKMm5Sv3N
    D6cAKHCfKMm5Sv3N
    52OGHCZRtjJ2KBGZ

    • Starting with the laptop top-down, locate and remove the twelve 1mm Phillips #0 screws securing the back cover to the main body of the computer.

  2. 2QJJsayImbYSlPXn
    2QJJsayImbYSlPXn
    lynJEslTOeB1nhbS

    • Use the Plastic Opening Tools or Metal Spudger to carefully loosen back cover from the body of the computer.

    • Be sure to avoid headphone jack when removing back cover by lifting cover away from computer and up.

  3. owZAOwECDQ6eqVxb

    • Lift off back cover to access inner components of computer.

  4. gKZk1SpjoxUfbQOS
    gKZk1SpjoxUfbQOS
    Vm4SRhjmCqYJNOHc

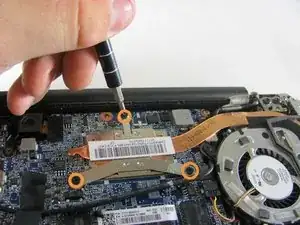

    • Remove the three 1mm Phillips #0 screws surrounding the fan.

    • Loosen the three 1mm Phillips #0 screws. These screws will stay captive to the heatsink.

  5. lptiawDCjflR2lZl
    lptiawDCjflR2lZl
    q4FO2YpBwjNbG2mG
    QsKa5c5Xy1EpYdmE

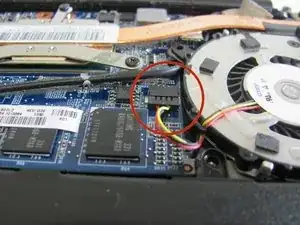

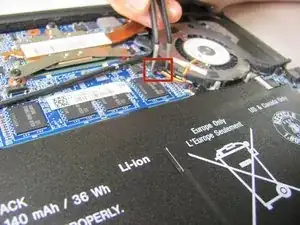

    • Use tweezers to carefully unplug the fan connector.

  6. WXfOPaGxtKFBlOIW
    WXfOPaGxtKFBlOIW
    JjuisiAGKZ1In5SR

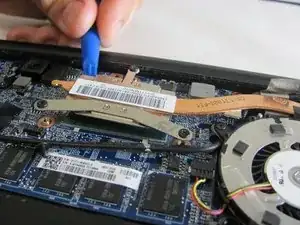

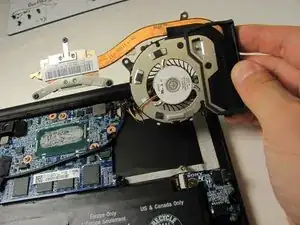

    • Use the Plastic Opening Tool to gently remove the heat sink and fan assembly from the computer.

    • Important: Follow the How to Apply Thermal Paste guide to replace the thermal paste before reassembling your device.

  7. gPuiXRUdOeeKaMie
    gPuiXRUdOeeKaMie
    OBcsF5TYrhTpWIQR
    LWX2hFTQNL5ScavO

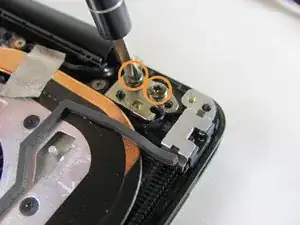

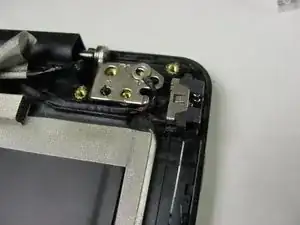

    • Remove 1mm screw using a Phillips Head #0 screwdriver.

    • Remove two 3mm screws using a Phillips Head #1 screwdriver.

  8. I16AtBuyXprhWHuC

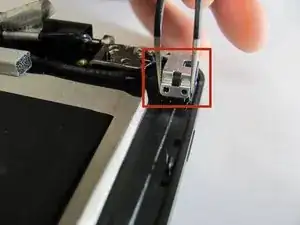

    • Use tweezers to carefully remove the charger port cover.

  9. FPh4HRaBD1MWADqv
    FPh4HRaBD1MWADqv
    sOTfyCiaEKmPoAec

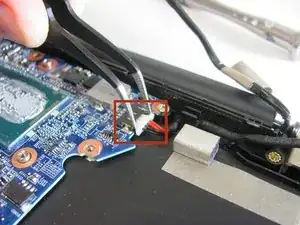

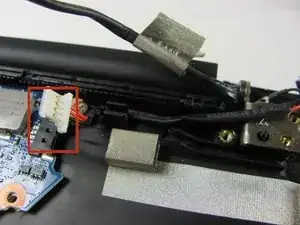

    • Gently unplug charger port from motherboard using tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
