Sony Xperia E3 Touch Screen Replacement

Geschrieben von: ZFix
  • Kommentare: 1
Sony Xperia E3 Touch Screen Replacement

Schwierigkeitsgrad

Very difficult

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

Sony Xperia E3 - How to disassemble the device and to change the Glass digitizer.

D2202, D2203, D2206, D2243, D2202

  1. XmW2YFfysDt2kyJr
    XmW2YFfysDt2kyJr
    dgUeyUHDPwiwbdYI
    btZpHVRRqPuEa1MD

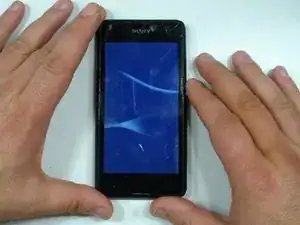

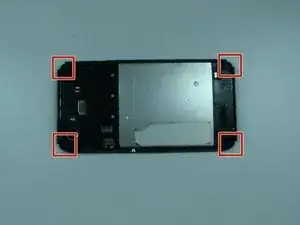

    • Turn off the device

    • Remove the SIM and the memory cards.

    • Remove 4x rubber corners.

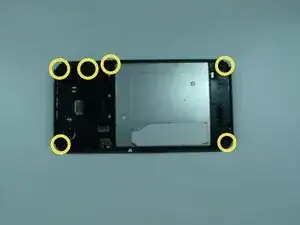

    • There are 6x black screws Torx T4, remove them.

  2. Sb6aXBHTmbNtZUat
    Sb6aXBHTmbNtZUat
    MawMx5WiDDRL3foF
    1Tu6IJEOF6AeapUF

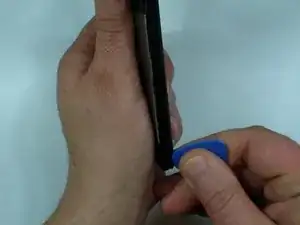

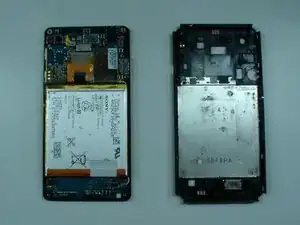

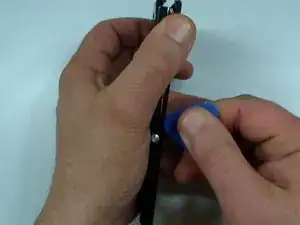

    • Use a plastic tool and separate the rear bezel.

    • Be careful for the side buttons.

  3. Gmu4re4GwnitRdye
    Gmu4re4GwnitRdye
    SXfqoPxOcJFkIDUf
    ToCaTkuWCJr4yYRV

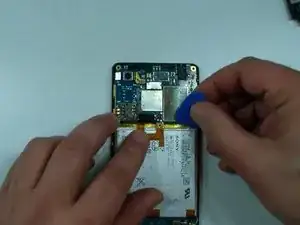

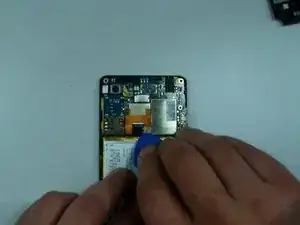

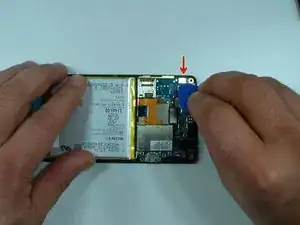

    • Disconnect the touch screen flex cable.

    • Disconnect the battery flex cable.

  4. YbcvQUjF5Difj3vJ
    YbcvQUjF5Difj3vJ
    CadZHKucOTNqIWbE
    yh1qkpZJjLrZZcKM

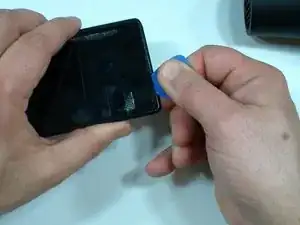

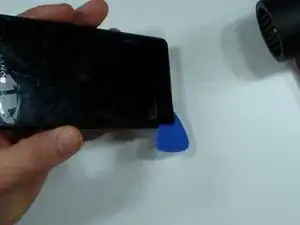

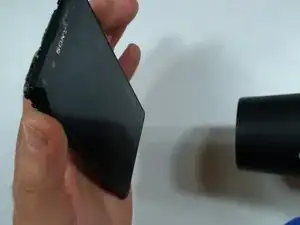

    • With a hair dryer or heat gun warm the glass, at first for about 2-3 minutes.

    • Use a thin plastic tool, like a plastic pick and start the separation from the underside.

    • Do this very slow and periodically warm the glass!

    • At the beginning you have to separate the touch screen glass from the main frame.

    2-3 minutes are not enough. I did it for 4-5 and I destroyed the LCD screen. It is best to apply heat for as long as is necessary for the glue to melted completely.

    sketchguille -

  5. SYLcRp6rcBq5SoF1
    SYLcRp6rcBq5SoF1
    sfRxniyoTg2Xammw
    Pjy1pcnvCyYMXZ1u

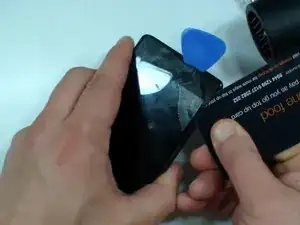

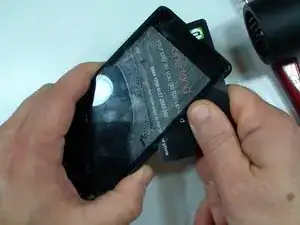

    • Now continue with a plastic card.

    • AGAIN!!! Very slowly and periodically worm the glass.

    • The LCD is thin less than a millimeter!

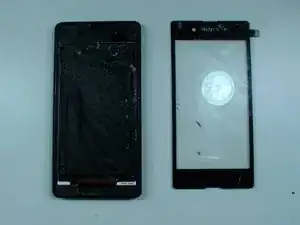

    • Remove the touch screen.

  6. pKER5d6XJBEKICMt
    pKER5d6XJBEKICMt
    u4TpvxaWWkBoU61u
    biBeuXTCZxLpUaEX

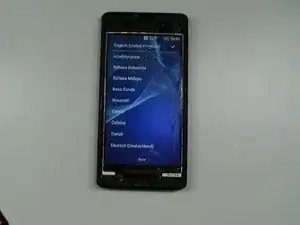

    • Now is time to test the phone.

    • If the LCD is OK you can order only a touch screen, if no, then you need display assembly - touch screen & LCD

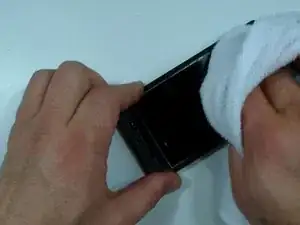

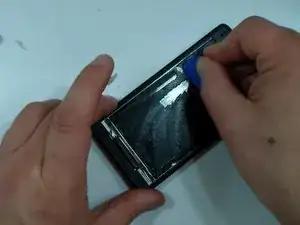

    • With a plastic pick gently scrape the glue.

    • With a cloth and isopropyl alcohol clean the LCD.

    • Don't use a lot of alcohol. if the liquid passes behind the LCD, will appear spots that you can't remove.

  7. SOreQWlXpPt5qE31
    SOreQWlXpPt5qE31
    hT32bX6PBrocmqf4
    FyxTqoLLn12W2ACM

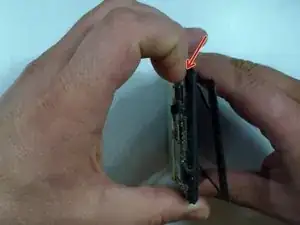

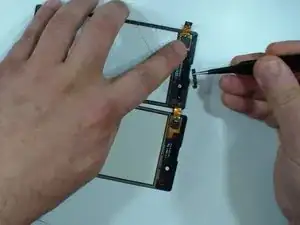

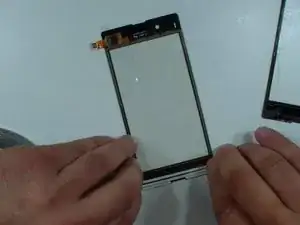

    • On the new touch screen or on the main frame put adhesive sticker 3mm.

    • Be careful not to cover the the places for the camera, sensor, earpiece, etc.

    • Lift the logic board a little bit, so that the touch screen flex cable can pass.

    • It's easier if you can order the touch screen together with adhesive which is cut off specifically for model.

  8. GJGYBTFOuHJmsWDq

    • Reassemble the device.

    • That's all.

Abschluss

To reassemble your device, follow these instructions in reverse order.
