Sony Xperia Z Displayeinheit tauschen

Geschrieben von: ZFix

Kommentare: 56

Schwierigkeitsgrad

Sehr schwierig

Schritte

Zeitaufwand

40 - 50 Minuten

Einleitung

Auch bekannt als Xperia Z LT36i, Xperia C6603, Xperia C6602, Xperia Z LTE, Xperia Z HSPA+

Austausch eines defekten Display und Touchscreen

Der Vorgang bist technisch anspruchsvoll und erfordert ein gesteigertes Maß an Erfahrung.

Werkzeuge

Ersatzteile

Sony Xperia Z Rear Cover Adhesive

Schritt 1

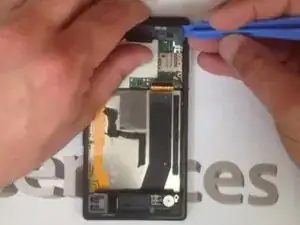

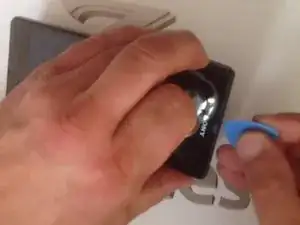

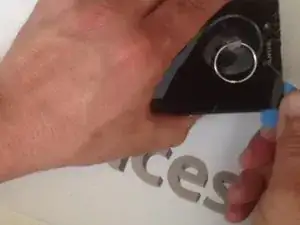

Erwärme die Akkuabdeckung, bevor du sie entfernst.

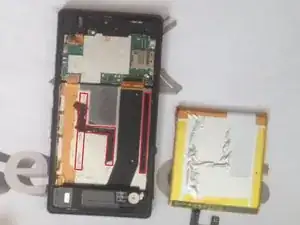

Schritt 3

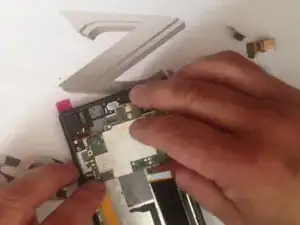

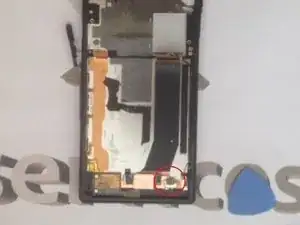

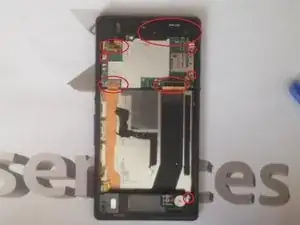

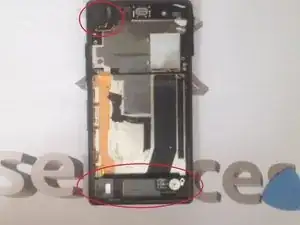

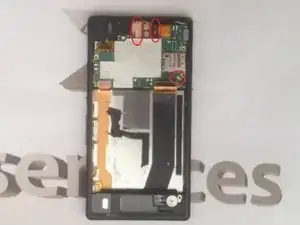

Entferne die markierten 4 Schrauben und entferne anschließend 3 Kabel vom Mainboard.

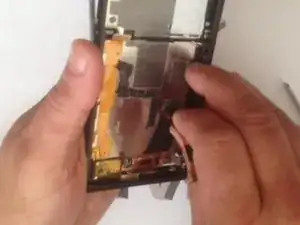

Schritt 4

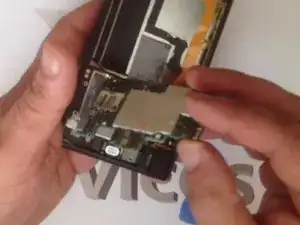

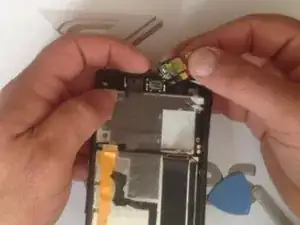

Hier sind die Hauptkamera, die Frontkamera und das Antennenkabel.
Nun lässt sich das Mainboard ausbauen.

Schritt 5

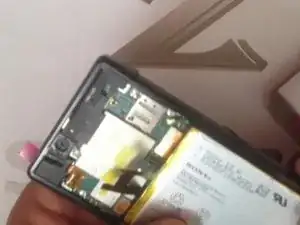

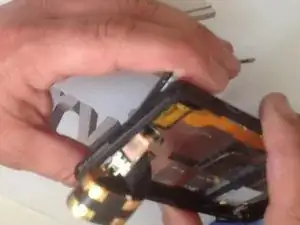

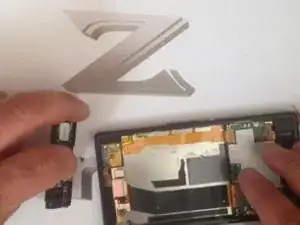

Die Kopfhöreranschluss und das Ringer / Cover / Antennensignal Modul.

Schritt 6

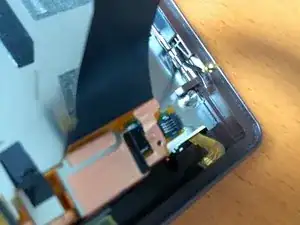

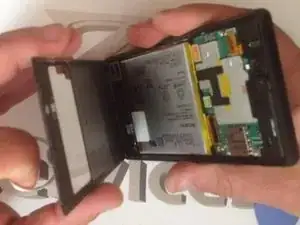

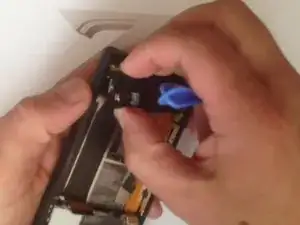

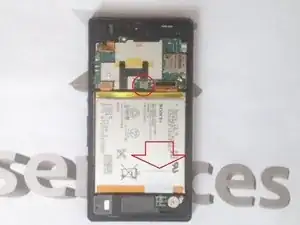

Trenne das LCD-Licht-Kabel, indem du das schwarze Plastikteil anhebst und das Kabel auf der rechten Seite entfernst. Jetzt ist alles bereit.

Thats not the cable for the homebuttons its for the LCD screen

cedricjprahl - 31/08/15

You are right. I will correct it.

ZFix - 31/08/15

Schritt 7

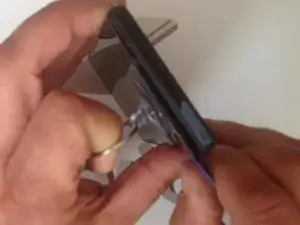

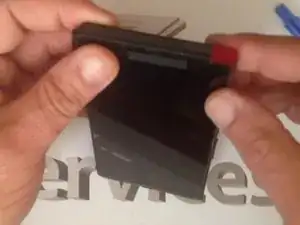

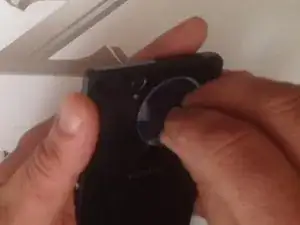

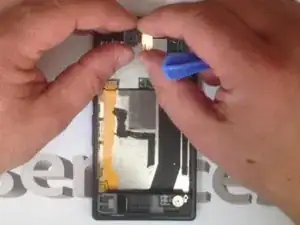

Bevor du anfängst den Touchscreen zu entfernen, erwärme diesen.

Schritt 8

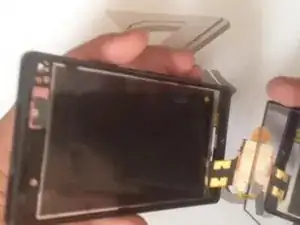

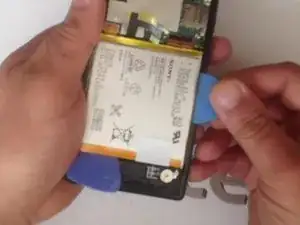

Jetzt kann das neue Ersatzteil eingebaut werden.

Schritt 9

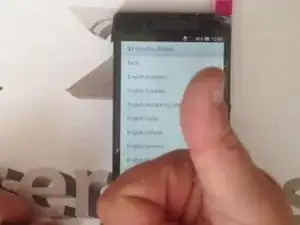

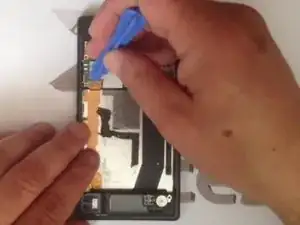

Ende gut, alles gut. :)
.
Warst du erfolgreich?

Abschluss

Um das Gerät wieder zusammenzubauen, befolge die Schritte in umgekehrter Reihenfolge.
