Sony Xperia Z1 Compact Earpiece Speaker Replacement

Geschrieben von: Frani Morris

Kommentare: 1

Sony Xperia Z1 Compact Earpiece Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

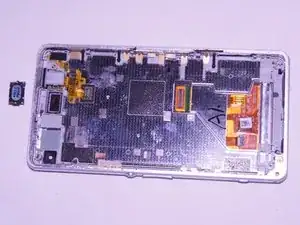

This guide will show you how to replace the earpiece speaker that no longer works.

Werkzeuge

Ersatzteile

Sony Xperia Z1 Compact Earpiece Speaker

Schritt 1

Heat along the edges of the back cover using a heat gun to soften the glue.

Schritt 2

Attach the small suction cup to the back cover near the bottom of the phone.
Pull up on the suction cup and insert the plastic opening tool in between the back cover and the rest of the phone.

Schritt 3

Move the spudger around the edge of the back cover to separate it from the black adhesive.
Separating the back cover from the rest of the phone ruins the adhesive which makes it no longer waterproof.

Schritt 4

Carefully disconnect the battery from the logic board by using the plastic spudger as a lever.

Schritt 5

Remove the single 1 x 3.0 mm screw holding the battery in using the JIS #00 screwdriver.

The replacement batteries probably come without the new NFC sticker, so you’ll have to transfer it from the original one to the replacement. This can be easily done with an iPlastix and a good amount of isopropyl alcohol. Do this carefully.

Stefano Restuccia - 13/08/19

Schritt 6

Pry the battery up from the ends using the plastic spudger until the battery pops out of the enclosure.

Schritt 7

Remove the battery from the device

Schritt 8

Unscrew the four screws on the corners of the back frame using the JIS #00 screwdriver.

Schritt 9

Wedge the plastic opening tool under the back frame. Move the plastic opening tool around the entire frame to separate it from the adhesive.

Schritt 10

Remove the back frame.

Schritt 11

Wedge the spudger underneath the external speaker. Pull up on the external speaker using the spudger.

Schritt 12

Remove the external speaker.

Schritt 13

Remove the square rubber gasket from the camera using the plastic spudger.

Schritt 14

Remove the black plastic corner still holding in the motherboard.

Schritt 15

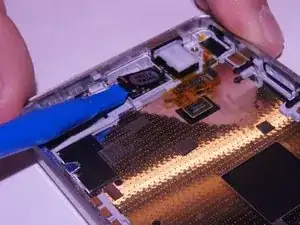

Carefully pry up on the four sides of the motherboard using the plastic spudger til it separates from the base of the phone.

Schritt 16

Remove the motherboard from the device.
There may be a small yellow adhesive underneath the motherboard still holding it in. Slide the tip of the spudger through it to sever it.
