Toshiba Satellite C55-A5302 ODD Replacement

Geschrieben von: Nicole Hague
  • Kommentare: 0
Toshiba Satellite C55-A5302 ODD Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to disassemble the Toshiba Satellite C55-A5302 to remove and replace the ODD.

  1. TWLNGKDracWpFTFa

    • Power down the laptop and remove all power cords. After this is done, turn the laptop over.

  2. QhRPEUrPEOmJfCwM

    • Slide the battery latches outwards away from the center of the device.

    • The right latch will slide to the right, and left latch to the left.

  3. 321RCbYniFgqDvS3

    • Lift and remove the battery from the device.

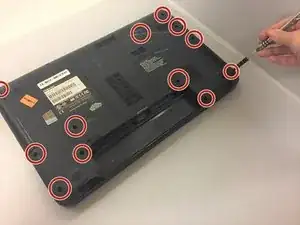

  4. dKnq24aYW2nYJDQb

    • Use the Phillips #1 screwdriver to unscrew the thirteen screws on the back of your device.

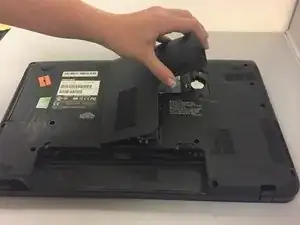

  5. mpaa2NBKAeyv2N1E

    • Remove the middle plastic cover to expose the hard drive.

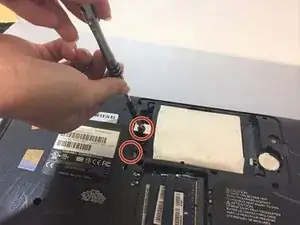

  6. HoupO1TCPnbAtGtl

    • Using the Phillips #1 screwdriver, remove the two screws holding the hard drive in place.

  7. sAiCDoCUXneEUyFj

    • Remove the three screws using the Phillips #1 screwdriver.

    • Insert you fingers into the rubber ends and gently pull the hard drive out of the device.

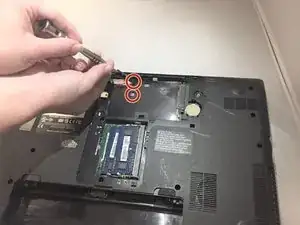

  8. UY5miHNMJUkTEWbs

    • Use the Phillips #1 screwdriver to remove the two screws under the hard drive.

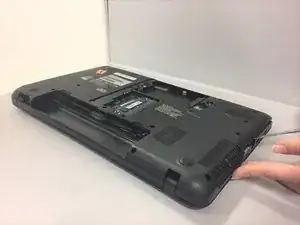

  9. W4ULddE2sYXstaOg

    • Use a metal spudger and run it along the edges of the computer to take off the plastic back cover. (Starting near a port usually allows more space for the spudger to be inserted)

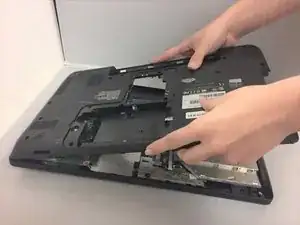

  10. EvSjhcFcfVUm5mwe

    • Slowly work from one end to the other to lift the back cover off.

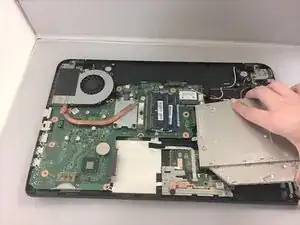

  11. LLLKSuIOeABDMprX
    LLLKSuIOeABDMprX

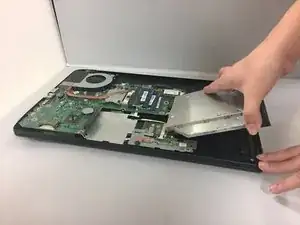

    fBahX21GNkEtORMC

    • Grab hold of the optical drive and elevate it slightly and remove it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
