Trek 4300 Bicycle Kickstand Replacement

Geschrieben von: Emily OConnor
  • Kommentare: 0
Trek 4300 Bicycle Kickstand Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

The kickstand has three parts: a bracket, a bolt, and the stand. To replace the kickstand the bracket and bolt will need to be removed to allow for the removal of the stand.

  1. ysLVGmYeJs3fcYv3
    ysLVGmYeJs3fcYv3
    iGTxoYLQMsJQBrDx

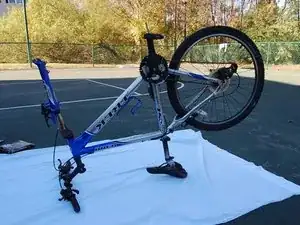

    • Flip the bike over so it is balanced and resting on the handlebar and the bike seat.

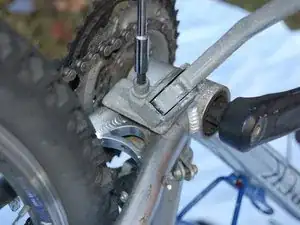

    • Using a socket screwdriver with a hex adapter, loosen the bolt that is holding the kickstand and bracket in place.

    • This may require a moderate amount of strength. Make sure you have the proper hex adapter as to not strip the bolt.

  2. Ry5DSshfQlZsCMki
    Ry5DSshfQlZsCMki
    nHBkgy64mekPstlA

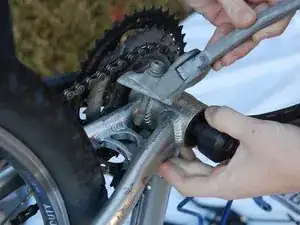

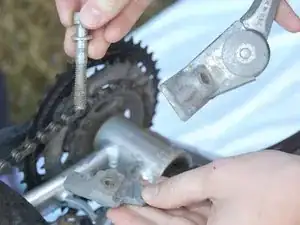

    • Once the bolt is loose, unscrew it the rest of the way by hand.

    • Remove the bolt. There should now be three separate pieces: the bolt, the bracket, and the kickstand.

    • Make sure to note the position of the bracket before you remove the bolt completely

Abschluss

To replace the new kickstand, follow these instructions in reverse order.
