Triace A310 Disk Brake Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

In order to have a safer biking experience, make sure your disk brake is properly replaced.

  1. TGKUg2KGBqbHKRTo

    • Begin loosening the tire by turning the quick release handle.

  2. SAgIvyHlHmtv1AaS
    SAgIvyHlHmtv1AaS
    OGXuAQpQbyqA5RB3

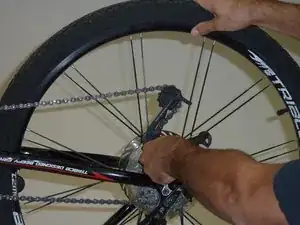

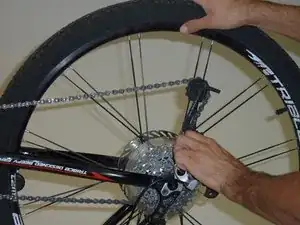

    • Gripping the rear derailleur, pull the arm back, away from the front of the bike.

    • Notice how the derailleur becomes almost vertical in the second picture when compared to the first.

  3. SojAmWFZaHYRIBOi
    SojAmWFZaHYRIBOi
    FMNAHemymXlxITuN

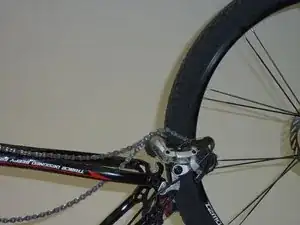

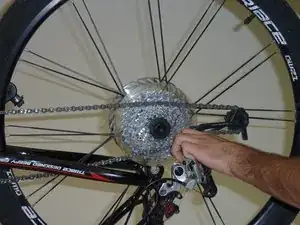

    • There should be enough slack, in the chain, at this point to remove the tire from the bike.

    • Note: You may need to wiggle the tire and chain around in order to create enough slack.

    • Remove the tire from the bike.

  4. OjM4UHRXGhHRQ4Ut

    • Place the tire flat on the ground making sure the disk is facing you.

  5. KsoNJsuGNrIuoqSC
    KsoNJsuGNrIuoqSC
    cUruOJd1YihFwaAt
    kuHLRwLUB63YvRAT

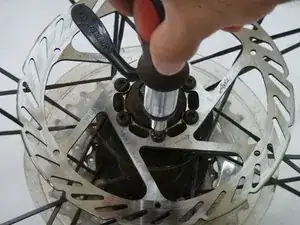

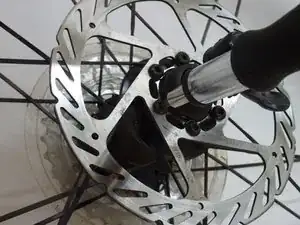

    • Using the modular screw driver with a T25 bit, begin loosening and then removing the six 10mm-long screws.

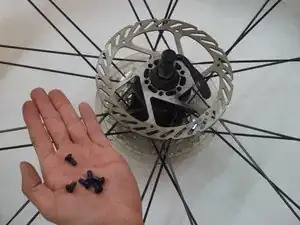

    • Make sure to keep track of all of the removed pieces.

  6. Z3DpCEdgNPkP3JCP
    Z3DpCEdgNPkP3JCP
    tOhVbeNUvMsQZiFP

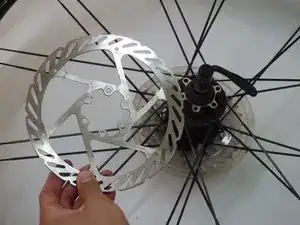

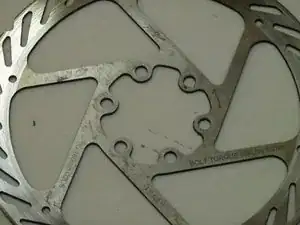

    • After all of the screws have been removed, take the disk and pull it away from the tire.

Abschluss

To reassemble your device, follow these instructions in reverse order.
