            Hold the on/off button for 3 seconds until the screen is black.
-
            Remove batteries by placing thumb on battery plate cover sliding it down to expose batteries.
-
            Turn camera upside down to allow the batteries to fall out.

-

-

                  -
            There are 5 (4.5mm in length) screws on the sides of the camera that need to be removed. Use a Phillips #000 screwdriver to remove all screws.
-
            Remove 2 screws on the right side of the camera, and store them on a magnetic mat.
-
            Remove 2 screws on the bottom of the camera, and store them on a magnetic mat.
-
            Remove 1 screw on the left side of the camera, and store it on a magnetic mat.

-

-

                  -

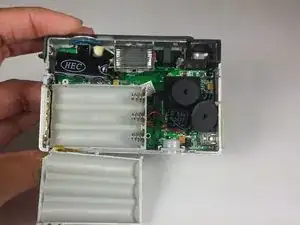

            Using a prying tool or fingernail, gently separate the back plate from the front plate, exposing the inside of the camera.

-

-

                  -

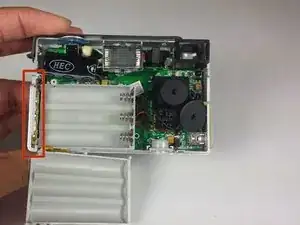

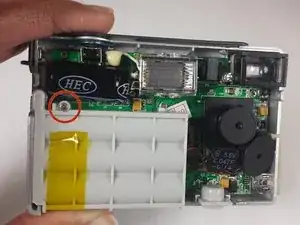

            With your fingers, gently pull the two pieces of the battery case apart. At this point, the battery door should be exposed

-

-

                  -

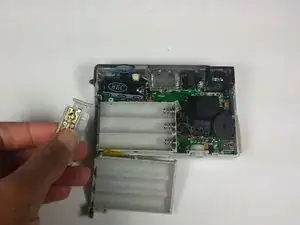

            With your fingers, gently remove the battery door.
-
            Now you are free to repair or replace the battery door! Follow these steps in reverse order to reassemble the camera.

-

To reassemble your device, follow these instructions in reverse order.
