iMac Intel 24" EMC 2111 Optical Drive Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 1
iMac Intel 24" EMC 2111 Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Internal prerequisite.

  1. EfQPmAmZqOCU2dNb

    • Remove the strip of tape covering the optical drive cable connector.

  2. ovySQZLTGiuqRIfH
    ovySQZLTGiuqRIfH
    QIlh5wLUEIxjMIs3

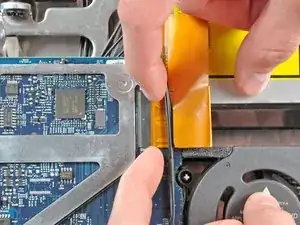

    • Gently pull the cable retainer on the optical drive cable ZIF socket toward the right side of the iMac.

    • The retainer should move about 1 mm and stop. Do not attempt to remove the retainer.

  3. BA14hXBPVAHCXNGO

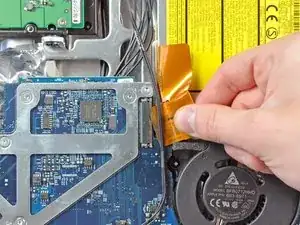

    • Pull the optical drive ribbon cable out of its socket, being careful not to rip it in the process.

  4. MNuTWnPsfHOAWemL

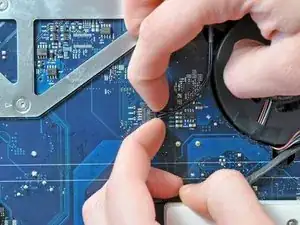

    • Pull the optical drive thermal sensor connector toward the right side of the iMac to disconnect it from the logic board.

  5. cNjYYpBllkQaXcPY

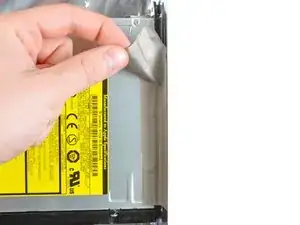

    • Peel off the strip of EMI tape attaching the right side of the optical drive to the rear case.

  6. O6svRxgSUbAmFT1Q

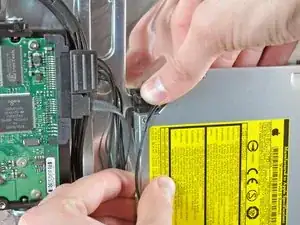

    • Push down on the optical drive bracket retaining clip while pulling the top edge of the optical drive away from the rear case.

    Looking at pic on step 18, if you follow the black plastic release clip downwards there is another clip (just below the drive) so you need to pinch them together (with the optical drive in the middle), rather than just press down on the top clip.

    If you look at the picture on step 19, you will see the corresponding release clip (just behind the middle of the orange ribbon cable) but it's not immediately obvious to see unless your looking for it.

    Tahir Khan -

  7. rOygQQdDgn25RUAX
    rOygQQdDgn25RUAX
    bWOmnduJRXkiVVIV

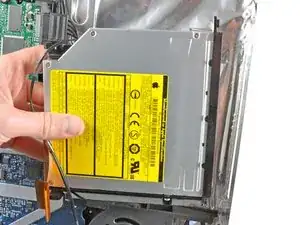

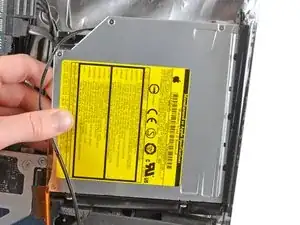

    • Rotate the optical drive slightly toward the bottom edge of the iMac while pulling it away from the rear case to release the lower retaining clip.

    • Pull the optical drive away from the right side of the rear case and remove it from the iMac.

Abschluss

To reassemble your device, follow these instructions in reverse order.
