iRobot Roomba 805 Motor Replacement

Geschrieben von: Grady Landers
  • Kommentare: 0
iRobot Roomba 805 Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

This guide will go over how to replace the motor in your iRobot Roomba 805.

  1. m2wD1LRWtRGsMv6Y

    • Remove the single 6.1mm Phillips #0 screw from the side brush.

  2. 4XZQVBvg65XbeMSK

    • Lift the side brush, removing it from the motor.

  3. ZMjGXrQeHU5QnHMo
    ZMjGXrQeHU5QnHMo

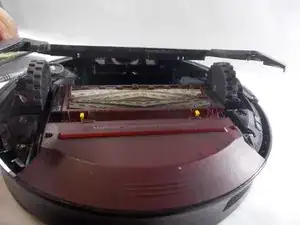

    FmGrM51HriQCjyKo

    • Remove the battery panel and the two screws behind the wheels.

    • Lift up the back panel and remove it from the Roomba.

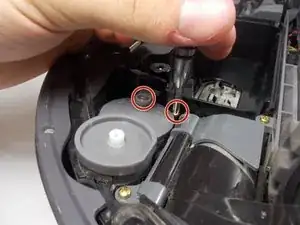

  4. E1PimNXJM2tOaBRC

    • Remove the three screws holding down the motor. Be aware one requires a tristar bit and the plastic piece under that screw comes free easily.

    • Once the motor is loose you can pull it up out of the Roomba.

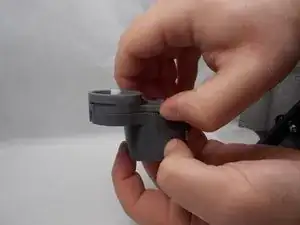

  5. 6GYFIYYOj4bNo1f3
    6GYFIYYOj4bNo1f3

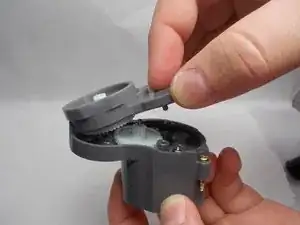

    aGmr6gwN3uOvhnXW

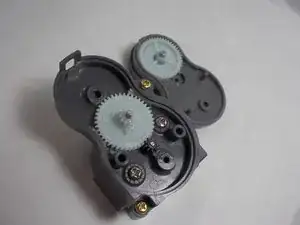

    OBiRhATGRyYmBHSB

    • Hold the motor by the bottom and the edge of the cap and remove the cap.

Abschluss

To reassemble your device, follow these instructions in reverse order.
